Product Name: 220V AC 120W Motor Classical Traffic Yellow Road Boom Barrier

Color: Yellow, Blue+white, Silver+grey, Or Customize

Application: Automatic Traffic Boom Barrier Gate Price Toll Gate Barrier

Usage: For Car Parking Lot Security Access Control

Feature: Automatic Traffic Parking Barrier System And Car Barriers

Arm Type: Folding Arm, Straight Arm, Fence Arm Or Customize

Arm Length: 1m ~ 6m

Certificate: CE

Packing: Carton+wooden Package

Warranty: 12 Months

Basic Infomation

Certification: CE

Payment & Shipping Terms

Packaging Details: Carton + wooden package for Ideal Fully Automatic Traffic Parking Barrier System and Car Barriers Factory in Sale

Supply Ability: 10000 Piece/Pieces per Year

Product Description

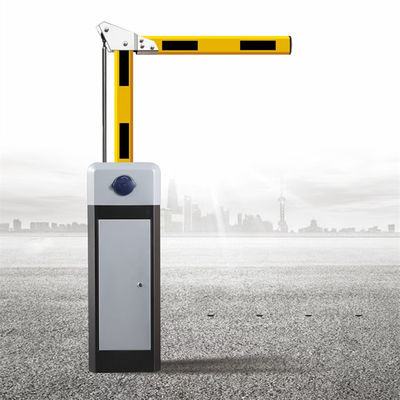

Ideal Fully Automatic Traffic Parking Barrier System and Car Barriers Factory in Sale

AC boom barrier

Product Description

Thank you for purchasing the 2nd generation boom barrier gate from Elefine. This product adopts the latest mold design technology, mold die-casting manufacturing technology, AC control speed technology, and can be quickly interchanged, noclutch design, more reliable quality and more convenient use. The movement adopts two-stage worm gear transmission and curved crank arm three-link structure, and the landing rod is fast and stable. Easy maintenance and long service life.

Advantage:

You can adjust the speed, high stability. If the power goes out, you can lift the bar with a screwdriver instead of
shaking it by hand.
Features:
1.The running speed can be adjusted from 3s to 6s
2.Can be quickly interchanged
3.Open the barrier gate by motor wheel when power off, automatically reset after power on
4.Curved crank arm three-link movement structure, the operation is stable.
5.Wireless remote control control open/close
6.Auto reverse function (force adjustable)
7.Infrared photocells connector is available
8.Loop detector connector is available.
9.Well-integrated with car parking system equipment,with wire control(must be switch signal)
10.Connector for traffic light (AC220V, power less than 120W)
11.Offering dry contact signal for car parking system (COM, NC, NO) 12 Auto-delay when closing(adjustable)
13.RS485 or CAN network communication interface (no need to install module)
14.Counting interface
15.24V backup battery interface (can be charged by using solar energy)
Technical parameters
1.Working temperature (motor): -35℃~+85℃
2.Rated voltage: DC24 V
3.Running speed: 3s~6 s
4.Rated current: 8.58A
5.Rated power: 140W
6.No-load speed: 1850 RPM
7.Rated speed: 1400 RPM
8.Output Power: 56.8 N.M
9.Relative humidity: ≤90%
10.Remote control distance: ≤100M (in the open place)
11.IP Degree: IP44
12.Max length of arm: 6M

Specification

Item	Value
Product name	Safety Vehicle Access Control Automatic Boom Barriers Car Parking Barrier Gate
Size	325280935mm
Brand Name	Elefine
Packing	Carton+wooden Box
Certificate	CE Approved
Application	High way or boom barrier
Color	Yellow, orange, black, red, grey or customized
Usage	For security access control
Feature	High speed boom barrier
Arm type	Straight arm or customized
Arm length	1m ~ 6m
Warranty	12 months

Detailed Product Description:
1.Humanized clutch

2.Electronic limit switch

3.Automatic backtrack

4.Water-proof housing

Functions & Features:
1) Manual release

2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking

3)
Die-casting aluminum alloy motor, precision and good at thermal radiating

4) Motor cooling fan, solving the problem of
heat-protection

5) Double safety limit switches (photo-electricity limit switch/motor memory sensor)

6) Reversing on obstacle

7) Auto-closing

8) Support the INFRARER PHTOCELL for anti-bumping function (optional)

9) Support the external and internal VEHICLE LOOP DETECTOR (optional)

10) Traffic light interface

11) Wire control (switch signal)/ Remote control (418MHZ)

12) RS485 communication module (optional)

If you are interested in this product, or you are a local agent, you can contact the seller, we can use the best way to shipping it, thank you!

Technical Data:
1.Boom type: straight, 90°,180° Optional

2.Running time: 3s, 6s

3.Max Boom length: 3m, 4.5m, 5m, 6m

4.Boom dimension 325*280*935mm

5.Boom weight: 2 - 5 kg

6.Machine core working temperature: -35 °C ~ +85°C

7.Electric cabinet working
temperature: -40°C ~ +75°C

8.Rating voltage: 220/ 110V±10%, 50/ 60Hz

9.Rating power: 100W

10.Relative humidity: ≤90%

11.Remote control distance: ≥30m

12.Net weight: 65kg

13.Frequency: 418mhz Welding use

14.Protection grade: IP44

Applications:

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

High Speed Traffic Boom Barrier Gate for High Way

Good Quality High Standard Fast Speed Traffic Access Control Red Green Light Boom Barrier Road Gate for High Way and Parking Lot

Packing & Delivery

Company Profile

Shenzhen Elefine Technology Co., Ltd. was founded in 2010, our company produces boom barriers, turnstiles, parking systems, face recognition terminals, parking locks, bollards, reflective vests, cameras and solar road lights. Now our factory covers an area of 3,000 square meters and currently employs more than 100 people, including 20 senior and mid-level engineers and technicians. We have 7 production lines and goods are exporting worldwide and has a good reputation. Shenzhen Elefine intelligent Technology Co., Ltd. has developed into a set of production, management, research and service in one group of key enterprises, is always adhere to the "people-oriented, innovative development" business philosophy, the pursuit of scientific and technological progress.
Our company vision is to lead safety control industry change and development and create a global e-commerce company.

Team

Clients

Exhibition

FAQ

1. What is the strength of your company in this industry?
We are the top 10 manufacturer in the safety control products field in China, more than 100 employees and over 20 R & D
technicians and engineers to ensure our products could work well in different environment. Our Elefine experienced overseas business team will help you to deal with any emergency before, during and after the sales. The brand Elefine is highly recognized worldwide.
2. What is your pricing strategy?
For overseas markets, we will offer competitive prices to support a strong distributor in every area, and gradually establish
overseas service agency, as a good opportunity, some long-term cooperation partners will cooperate with us to sign the annual cooperation agreement (including execution price).
3. How about Quality Control?
IOS9002 could help us to realize the factory management control and our ERP system can help us to control the cost of procurement links effectively, so we can provide competitive price. New test system could do uninterrupted fatigue testing to ensure its using life. Pre-shipment inspection and third-party supervision are available and welcome.
4. How about some special design?
That's our advantage of design new turnstile gate or boom barrier according to your real situation to make different size,
software and features. Video call available during design and communicate in time during this procedure.
5. Do you have agency for after-sales service?
Any question about delivery and installation, you could find our sales and engineers anytime. Our engineers and technicians will offer instruction videos to help and if you face with any technical question, welcome to contact with us to do online video call or remote control to solve it.
6. What time do you need to delivery?
Normally, 3-7 working days production time for samples order upon receipt of payment for common orders, for bulk order, it depends on the order quantity, we could talk about this before final payment.
7. How about the payment method?
Standard products: 30% deposit, 70% balance before shipment.
Customized products: 50% deposit, 50% balance before shipment.
Contract amount more than USD15000: 50% deposit, 50% balance before shipment.
T/T, PayPal, Credit card (via Alibaba Trade Assurance order) supported.
8. How to deliver?
We can make delivery by air or by sea, you are suggest to choose delivery by sea to reduce cost for order over 10 sets.
