Features

Specifications

Color: Orange

Boom: Optional

Voltage: 220V/110VÂ±10%

Usage: Road Traffic Safety

Warranty: 1 Years

Feature: High Durable

Certificate: CE,ISO9001

Packing: Carton

Material: Stainless Steel

Keyword: Barrier Gate

Basic Infomation

Certification: CE,ISO9001

Payment & Shipping Terms

Packaging Details: carton or wooden case

Supply Ability: 10000 Set/Sets per Month barrier gate

Product Description

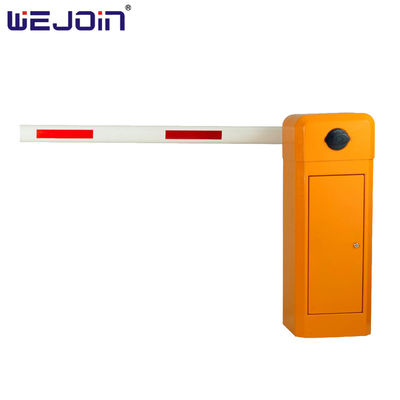

WEJOIN Barrier Gate WJDZ101/102

The WEJOIN DZ101/102 barrier gate, which is manufactured by our company, adopts the latest automatic technology and intelligent design ahead in this field. Meanwhile, our barrier gates have an advanced design, such as a humanization clutch device, balance device(e.g), which makes our barrier gate work more safely and conveniently. This barrier gate is suitable for indoor as well as outdoor parking areas, parking lots, toll gates, goods yards, railway crossing, commercial premises, apartment, block access, shopping malls, hospitals, stadiums, business centers, etc.

Boom-Type Selection

Model

101-11

101-13

101-16

101-23

101-26

101-33

101-36

101-46

101-56

102-11

102-13

102-16

102-23

102-26

102-33

102-36

102-46

102-56

Running time

Boom type

Straight

90° folding

180° folding

2 fencing

3 fencing

Max boom length

4.5m

Boom dimension

45x80mm

45x100mm

Boom weight

3kg

4.5kg

6kg

6.5kg

8kg

9kg

11kg

7kg

7.5kg

Voltage

220V±10%, 110V±10%

Frequency

50/60HZ

Motor voltage

220V

Power

80W

Working temperature

-35℃~+75℃

Protection grade

IP54

Functions & Features

1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on an obstacle
7. Auto-closing
8. Support the INFRARED PHOTOCELL for anti-bumping function (optional)
9. Support the external and internal VEHICLE LOOP DETECTOR (optional)
10. Traffic light interface
11. Wire control (switch signal)\ Remote control(418MHz)
12. RS485 Communication module (optional)

Advanced Features

Packing & Delivery

Manufacturing Technique

Company Profile

SHENZHEN WEJOIN MECHANICAL & ELECTRICAL CO., LTD.

Shenzhen WEJOIN Mechanical&Electrical Co. was founded in 2004. It is the first national high-tech enterprise specialized in research and development, manufacturing, and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers in access control and management product. Its main products include automatic barrier gates, tripod turnstiles, flap barriers, swing barriers, etc. All the products have CE certificates and have been exported to more than 100 countries or regions, such as Germany, British, Spain, Czech, France, Malaysia, India, and so on.

Certifications

Exhibition

FAQ

Q1: What are your main products?
A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Q2: Are you a manufacturer? Do you provide ODM / OEM service?
A: Yes, we are a manufacturer. WEJOIN provides professional customized services for global clients.
Q3: I would like to ask if this is with an RFID card reader and controller?
A: Yes, there is a controller, our barrier gate can connect with an RFID card reader.
Q4: What boom types of your barrier gate?
A: We have 1s with 3m barrier arm, 3s with 4.5m barrier arm, 6s with 6m barrier arm, etc
Q5: What is your MOQ?
A: Any quantity is acceptable.
Q6: How much is 1 set? Can provide product details? How fast and how much it would cost to ship this item?
A: Please Click here and send your inquiry, then we will send you the price and details in time.
Q7: How about the payment option?
A: 30% by T/T, 70% by T/T before delivery.
Q8: Do you have a model that can be used outdoors without further shelter?
A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.
Q9: How much warranty time do you have?
A: Within one year, if any problems, we will offer the accessories.
Q10: Do you use WeChat? Can we please talk on WeChat? or WhatsApp?
A: Yes, my WeChat ID FZ15002051250, my phone number/WhatsApp is +86 15002051250, my skype ID wejoin09.
