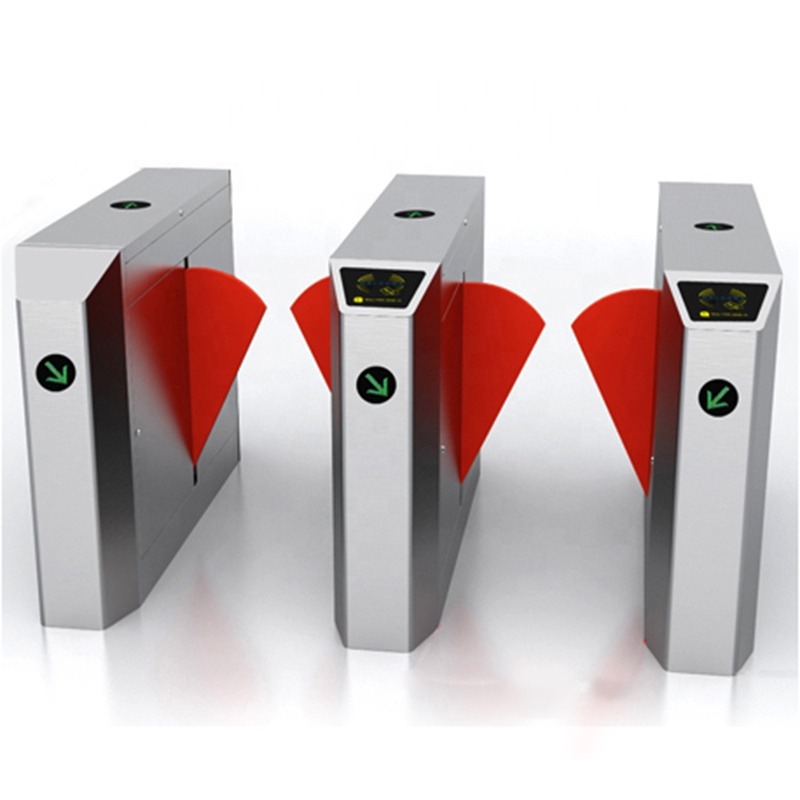

Security Flap Barrier,Flap Barrier Gate WIth Acrylic arm Led Light
Designed reasonable and reliable movement, noise small, the internal hydraulic device automatically Buffer, run a smooth, long service life.
With the power drop-shot function, can also carry out additional remote control rod ,it in the management and deal with emergencies .
Prompted with the direction of LED lights.
Can be set "with memory " or "not to bring memory " function (when set to "bring Memory", the brush can be used in a scenic spot ticket too many people groups occasions).
With automatic reset function ,namely ,access to lock permissions, set at the time Three is no inter-lock ,three roller gates automatic cancellation of this authority back to the lock Set state.
Waterproof ,sunscreen ,cold and high temperature.
Installation with personalized interface, compatible with IC,ID cards and other smart cards.
A unified ,standard external electrical interface with a variety of reading and writing equipment Freely articulated ,easy system integration .
Technical Parameters
|
Model No |
WCH-TY04 |
|
Material |
1.5mm 304# Stainless Steel |
|
Dimension |
1,200*280*1000mm (L*W*H) |
|
Channel width |
500-600mm |
|
40mm |
|
|
Open or close time |
1 second |
|
Passage direction |
Single or Bi-directional |
|
Flow of passage |
30-40 passengers per minute |
|
Motor |
DC Brush motor (24v) |
|
Emergency mode |
Free egress when fire signal triggered |
|
Power supply |
AC220±10% V,50HZ |
|
Power output |
DC12V |
|
Control typw |
RFID/Barcode/Fingerprint control |
|
Working temperature |
-45℃- 80℃ |
|
Lifetime |
Over 3 million times |
|
ODM/OEM service |
Available |
|
Usage |
Indoor or outdoor |
|
Gross weight |
65kg |
|
Warranty |
One Year |
Advantage
Matt finished housing surface, dustproof and rainproof design for outdoor use.
Durable DC brushless motor, highly integrated mechanism, 100% heavy duty operation.
Drop arm when power off, raise arm automatically when power on.
Compatible with other access control system.
Convenient installation and maintenance.
All of our products delivery by Sea or Air,the pack material is Poly film+Carton,and this pack way has been tested many many time in different transportation situation from our Simulated transport machine(see my attachment).it shows a good packing method from our many years experience
Shenzhen WENCAN technology co., ltd was founded on 2008, with its headquarter in SHENZHEN, Which is a professional Hi-Tech enterprise specialized in the research development and manufacturing of parking system and turnstile gate system.
Our main comprehensive product lines include: Tripod turnstile, swing barrier, flap barrier, barrier gate, vehicle parking management system, parking guidance system and some traffic accessories.
Most of products has acquired CE certificate, and our factory also gained ISO9001 Quality certificate. Our main markets are South-East Asia, South Asia, Middle East, Euorpe, Africa, South America.In order to provide our customer better service, we have established agent sites in Sri Lanka and Thailand. More distributors are needed to expand our marketing share and gain win-win outcomes.
FAQ:
1-Can you install RFID card reader on the turnstile?
Yes,except the RFID card reader system,we also can install fingerprint reader system,token system,esd system,etc.
2-How about the guarantee and after sale service?
We have 12 month quality guarantee, We own well-trained and passional sales & after- sale services who can speak fluent English language
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer
4-How about the payment terms?
TT,western union,L/C,our company already joined the trade assurance,it will highly protect your order security.
5-How do you send the product to me,how long?
For sample,normaly send by air or express,about 3-5 days
For quantity purchase,normally by sea, it normally takes 7-60 days depend on different countries.
7-Can you do OEM service?
We offer below OEM services:
1)We can make custom design turnstile,or you tell me your requirements ,we can make a design for you.
2)Can print your logo on turnstiles, can customize the retail box packing and other things.
8-How can we contact with you immediately?
We got several kinds of communicate ways, just hope to keep good touch with you
Skype:April Turnstile and Parking
| Contact Person : | Edith Zhu |
|---|
