Home /Products/Swing Turnstile Gate/304 Access Control High Facial Swing Fingerprint Recognition Stainless Steel Security Turnstile Glass Barrier Speed ​​Gates

304 Access Control High Facial Swing Fingerprint Recognition Stainless Steel Security Turnstile Glass Barrier Speed ​​Gates

2.0 Units
MOQ
304 Access Control High Facial Swing Fingerprint Recognition Stainless Steel Security Turnstile Glass Barrier Speed ​​Gates
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: YAT6626
Material: 304 Stainless Steel
Thickness Of Steel: 1.5mm
Certificate: CE
Dimension: L1400*W200*H1000mm
Gross Weight: 75Kg
Passage Width: 850mm(optional)
Working Mode: Single Or Bi-direction
Rotation Angle: 180 Degree
Warranty: 2 Years
Motor: Brushless Motor
Basic Infomation
Certification: CE
Model Number: YAT6626
Payment & Shipping Terms
Packaging Details: waterproof foam ,neutral carton and export wooden case
Supply Ability: 600 Unit/Units per Month
Product Description
Product Description

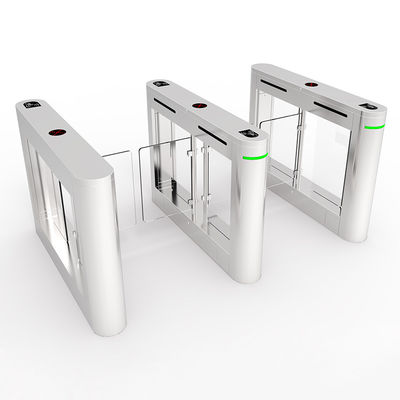

Glass swing Turnstiles have clear bidirectional motorized barrier panels and a stylish architectural design that enhances any access control installation.
High security with optional sensor quantity, and dual swinging glass barriers available in multiple heights
Small footprint as the sleekest pedestal in the Glassgate line, with glass barrier in four heights.
Offers maximum lane widths for wheelchair access with advanced “sidegating” technology.
Housing material
304 stainless steel
Housing size
L1400*W180*H1000mm(optional)
Entrance width
500-950mm(optional)
Housing thickness
1.5mm
Net weight
80Kg/unit
Temperature
-10 ℃-50℃
Humidity
≤90%
Motor
brushless motor
Normal life-span
5-8 million times
Operation speed
30-45person/min
Working environment
indoor
Glass material
Acrylic glass/PC glass
Direction
Single direction/Bi-direction
Input interface
Dry contact signal or +12V level signal or RS485 communication signal
Communication interface
RS485(distance less than 1200m)
Main Function
1.Optional card reader:Rfid card ,fingerprint scanner ,face machine ,Bar code, QR code ,card collection ,intercom system ,remote control and so on
2. Access control system ,Ticketing system ,consumption system
3. Standard/customize housing design (ODM/OEM)
5. Optional entrance width(500-1000mm) ,glass door size, operation speed
Applications
Banks and insurance companies ,airports
Government buildings and instituations
Office buildings,head offices,administrative sites
Schools ,universities and colleges
YAT6626 size drawing
YAT6626 in factory
QR code swing turnstile YAT6626 for gym
Face machine swing turn stile YAT6626 for office
Swing turnstile YAT6626 with special housing design
YAT6626 after installation project picture
Bank glass swing turnstile YAT6626
Office face machine YAT6626
YAT6626 with special design
Optional reader and system
Card
Face machine
QR code scanner
Fingerprint scanner
Button
Intercom system
IR sensor
Counter
...............
