Home /Products/Parking Arm Barrier/DZ628 Hot Selling Automatic Machine Parking Lot Management System

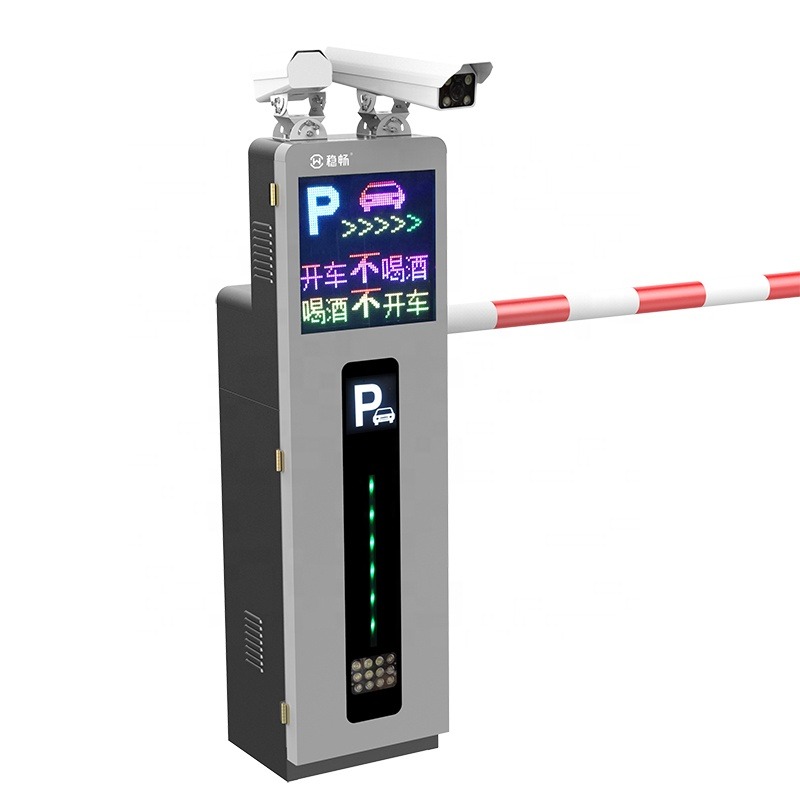

DZ628 Hot Selling Automatic Machine Parking Lot Management System

1 Set
MOQ
$2,350.00(>=1 Sets)
Price
DZ628 Hot Selling Automatic Machine Parking Lot Management System
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Parking Lift
Model Number: DZ628
Warranty: 12 Months
Input Voltage:: AC 110V/220V
Working Voltage:: DC24V
Work Rate:: 150W
No Spring Rod Length (86mm*44mm): 4m
With Spring Rod Length:: 6m
Landing Rod Speed:: Adjustable From 0.8 To 6 Seconds.
Remote Control Frequency:: 433MHz (rolling Code)
Remote Control Distance:: 100m (open State)
Interface:: Switch Interface, 485 Interface (optional)
Working Temperature:: -40℃~+80℃
Basic Infomation
Model Number: DZ628
Payment & Shipping Terms
Product Description
Product Description
The gate brake adopts the currently popular DC brush-less motor + high-performance numerical control technology based on ARM. It has small size, light weight, no connecting rod, no left and right fixed,adjustable speed, simple structure, zero failure, long life and convenient maintenance.
Compared with traditional barriers:
1). Traditional barriers use AC motors with low efficiency. Due to the induction principle of AC asynchronous motors, the motor efficiency can only reach 70%. The start-stop impact is too large, and a four-bar linkage must be added to achieve cushioning, so the structure is complicated and the cost is high. Due to the characteristics of the four-bar linkage, it is determined whether it is fixed left or right at the factory. The scene cannot be changed. The rotation speed is relatively fixed, and the speed cannot be adjusted, so the speed of the landing gear is fixed at the time of design. The complex structure causes high manufacturing requirements and high failure rate! The characteristics of asynchronous motors have a great
influence on the power factor of the grid.
2). The permanent magnet brush-less DC motor has no eddy current, high efficiency, convenient speed regulation, start and stop curve operation, no four-bar linkage assistance, structural order, low cost, high production efficiency, simple exchange between left and right, low failure rate , Does not affect the power factor of the power grid
3). The permanent magnet brush-less DC motor controller adopts advanced high-performance ARM single-chip microcomputer, combined with popular embedded software design. Start-stop curve acceleration and deceleration, the motor runs smoothly and the impact is small. Flexible parameter setting and adjustable speed. High reliability.
Function &Features
–Remote control to operate the barrier gate.
–Infrared photocells interface is available (need to install photocell device).
–Loop detector interface is available (need to install loop detector) .
–Well-integrated with car parking system equipments, with wire control (must be dry
contact signal).
–Interface for traffic light, dry contact output (traffic light must be less than 10A)
–Offering signal of limit status for car parking system (output COM, NC, NO).
–Auto-closing function (adjustable from 0s to 255s, factory default off this function)
–24V low-voltage BLDC motor control system that safe and reliable,MCU
control ,operating smoothly, no noise and no vibration.
–Left and right Installation changeable according your need.
–The speed increase and decelerates curve via position sensor. The opening and closing
speed can be adjustable 0.8-6S.
–Comes with resistance rebound function.
Technical Data
Thickness: 320mm
Width: 280mm
Height: 980mm
Shaft height: 850mm
Shaft diameter: 30mm (tapered)
Packaging & Shipping
Company Information

Founded on 2008, Shenzhen WENCAN technology Co., Ltd is a professional Hi-Tech enterprise specialized in the research development and manufacturing of parking system and turnstile gate system. Our main comprehensive product lines include: Tripod turnstile, swing barrier, flap barrier, barrier gate, vehicle parking management system, parking guidance system, license plate recognition system, face recognition system and some traffic accessories. Most of products has acquired CE certificate, and our factory also gained ISO9001 Quality certificate. Our main markets are South-East Asia, South Asia, Middle East, Europe, Africa, South America. In order to provide our customer better service, More distributors are needed to expand our marketing share and gain win-win outcomes. Welcome to join our distribution network and become our agents in your local.

Terms & Condition

1. Warranty: 1 year

2. Certificates: CE

3. MOQ: 1 piece

4. OEM: Available

5. Lead time: 3~7 working days

Contact Details:

Shenzhen WENCAN Technology Co.,Ltd

Contact Person: Jasmine

Mob/Wechat ID: +86 18948302183

Website: http://en.szwencan.com/

Add:2/F, Building 6, Sunshine Industrial Zone, Xili Town, Nanshan District, Shenzhen
