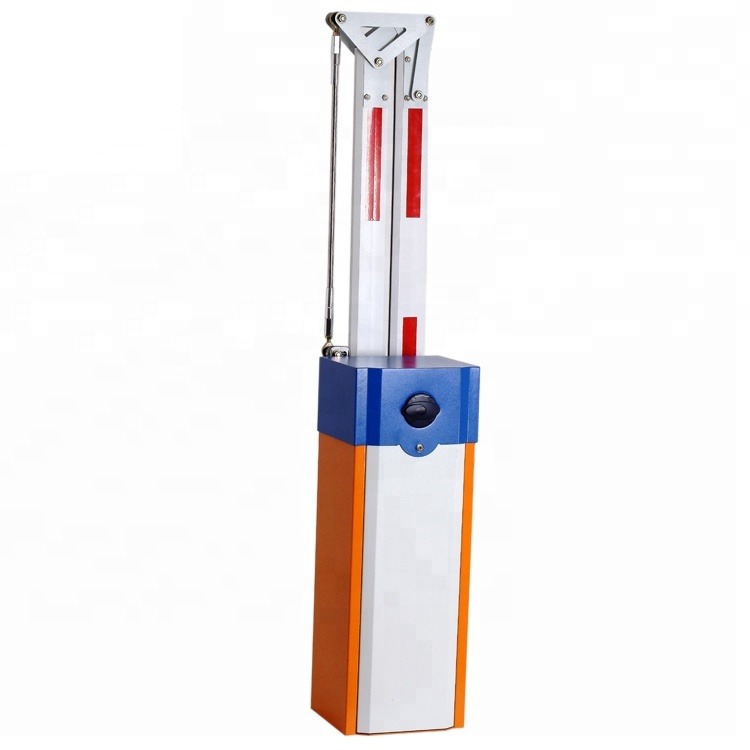

The WEDZ101 barrier gate, which manufactured by our company, adopt the latest automatic technology and intelligent design ahead in this field. Meanwhile our barrier gates have the advanced design, such as humanization clutch device, balance device(e.g), which makes our barrier gate work more safely and conveniently. This barrier gate is suitable for indoor as well as outdoor parking area, Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc.
Production Series
| Model No. (WJDZ) | Open/Close Speed | Max Boom Length | Boom Type |
| 101-16 | 6 sec | 6m | straight boom |
| 101-13 | 3 sec | 4.5m | straight boom |
| 101-11 | 1 sec | 3m | straight boom |
| 101-26 | 6 sec | 5m | 90 degree,Articulated boom |
| 101-23 | 3 sec | 3m | 90 degree,Articulated boom |
| 101-36 | 6 sec | 5m | 180 degree,Articulated boom |
| 101-33 | 3 sec | 3m | 180 degree,Articulated boom |
| 101-46 | 6 sec | 4.5m | Two-level, fence boom |
| 101-56 | 6 sec | 4m | Three-level, fence boom |
Technical Specification
| Working Temperature | -40℃~+75℃ |
| Voltage | 220V±10%, 110V±10%, 50/60HZ |
| Rated power | 80W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Net weight | 60kgs |
| Arm Speed | 1s, 1.8s, 3s, 6s |
| Max boom length | 8 meters |
Functions & Features
1) Manual realease
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking;
3) Die-casting aluminum alloy motor, precision and good at thermal radiating;
4) Motor cooling fan, solving the problem of heat-protection;
5) Double safety limitswitches (photoelectricity limit switch/motor memory sensor);
6) Reversing on obstacle;
7) Auto-closing;
8) Support the In frared Photocell for anti-bumping function(optional);
9) Support the external and internal Vehicle Loop Detector;
10) Traffic light interface;
11) Wire Control ( switch signal) / remote control (418 HZ/433 HZ );
12) RS485 Communication module (optional).
| Dual Speed Mechanism |
| [ ADVANCED FEATURES ] |
| [ RELATED PRODUCTS ] |
| click below photo to see more |
| [ COMPANY INFORMATION ] |
| click below photo to see more |
SHENZHEN WEJOIN WECHANICAL & ELECTRICAL CO., LTD.
Shenzhen Weijoin Mechanical&Electrical Co. was founded in 2004. It is the first national high-tech enterprise speciallized in research and development, manufacturing and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers in access control and management product. Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
| certificates |
| exhibitions |
| Buyer Feedback |
|
[ WEJOIN MANUFACTURING TECHNIQUE ] |
| All Product Tests Before Delivery |
WEJOIN utilizes advanced testing equipment and various testing methods in all production processes.
|
Packaging
| Size | 102 (L) * 37(W) * 47 (D) |
| Weight | 60 KG |
| Packaging Details | The normal package is paper carton (Size: 102*37*47 cm). If wooden box is needed to export overboard, the wooden box will be fumigated.If container is too tigher,we will use pallet or pack it according to customers special request. |
| Size | 615 (L) * 11 (W) * 5 (D) |
| Weight | 6.6 KG |
| Packaging Details |
The normal package is foam paper. |
Our Service
| Pyment Term | Leading Time | Minimum Order | Supply Ability | Package |
| T/T; West Union | 5-7 working days | 1 Unit | 10,000 Unit/ Month | Paper Carton or Wooden Box |
| [ FAQ ] |
Q1: What is your main products?
A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Q2: Are you manufacturer? Do you provide ODM / OEM service?
A: Yes, we are manufacturer. WEJOIN provide professional cudtomized serice for global clients.
Q3: I would like to ask if this is with RFID card reader and controller?
A: Yes, there is a controller, our barrier gate can connect with RFID card reader.
Q4: What boom types of your barrier gate?
A: We have 1s with 3m barrier arm, 3s with 4.5m barrier arm, 6s with 6m barrier arm ,etc
Q5: What is your MOQ?
A: Any quantity is acceptable.
Q6: How much is 1 set ? Can provide product details? How fast and how much it would cost to ship this item?
A: Please Click here and send your inquiry, then we will send you the price and details in time.
Q7: How about payment option?
A: 30% by T/T, 70% by T/T before delivery.
Q8: Do you have a model that can be used outdoors without further shelter?
A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.
Q9: How much warranty time do you have?
A: Whithin one years, if any problems, we will offer the accessories.
Q10: Do you use wechat? Can we plaese talk on wechat? or whatsapp?
A: Yes,my wechat ID FZ15002051250, my phone number/whatsapp is +86 15002051250, my skype ID wejoin09.
| [ CONTACT US ] |
| Provide Professional Customized Service for Global Clients |
| Contact Person : | Edith Zhu |
|---|
