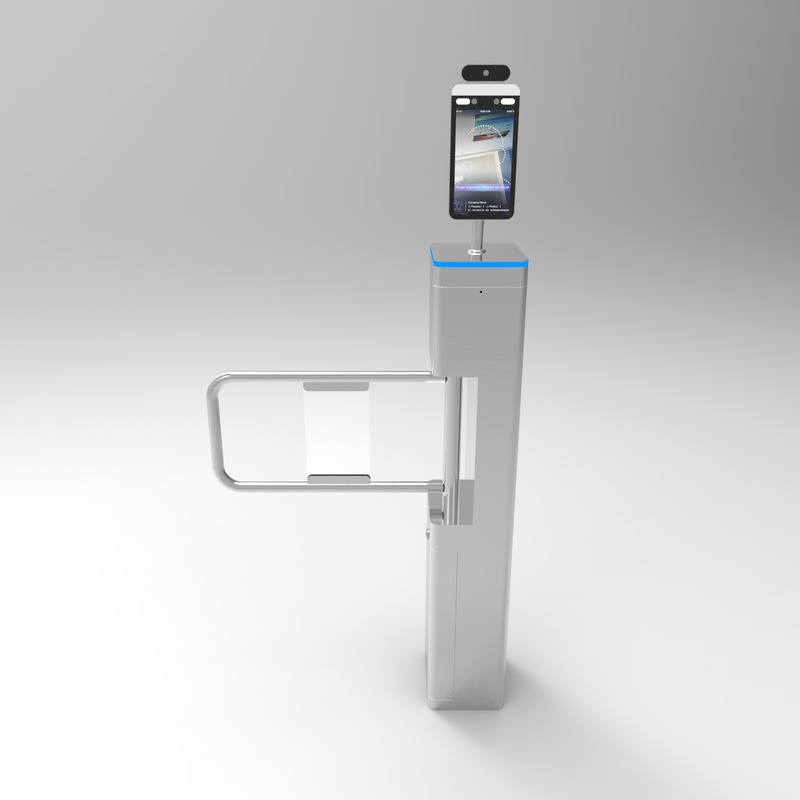

Small Slim Swing Barrier Face Recognition Office Building Access Control Barrier Gate
Products Description
The swing barrier provides a reliable and effective method to ensure that only authorized
users are allowed to access every area of the building. It meets the fire emergency requirements,
all channels are opened for power failure, and there is an independent fire alarm interface. The
compact unit makes it easy to construct a multi-channel setup, while the multiple colors allow you
to perfectly match this turnstile to your hall or brand.
Parameters
|
Structure parameters |
|
|
Housing material |
304 grade stainless steel |
|
Thickness |
1.5+1.0mm |
|
mainboard |
Independent development mainboard |
|
Arm material |
Acrylic |
|
Technical parameters |
|
|
Size |
180*220*1050mm |
|
Lane width |
≤850mm |
|
Passing speed |
35--50 people/min |
|
Open/close speed |
0.1--0.6sec |
|
Weight |
40KG |
|
Turning angle |
90 degree |
|
MCBF |
5.000.000 times |
|
Application |
Indoor or outdoor |
|
Rotating directional |
Single way or Bi-directional adjustable |
|
Noise |
<55db |
|
Operating temperature |
-25 to 70℃ |
|
Relative humidity |
5% to 95% |
|
Package |
Carton box inside. Wooden case outside |
|
Electronic parameters |
|
|
Power supply |
110-220V/AC, 50/60HZ |
|
Rated power |
100W |
|
Input signal |
Dry contact |
|
Driving motor |
Brushed motor |
|
Method of position |
Limiter |
Company Information
Shenzhen Tongdazhi Technology Co., Ltd. is a national high-tech enterprise integrating R&D, production,
sales and service. Since its establishment in 2009, the company has been dedicated to becoming a
one-stop service provider for solutions for access control equipment, smart access control systems,
ticket management systems, human-card identification systems, parking systems, and anti-terrorism
roadblock equipment. We develop, design and produce advanced and mature access control systems.
We provide customized hardware and software products and reliable and stable system for customers.
We have independent import and export rights, and our products have been sold in more than
80 countries and regions. We are willing to cooperate with you and share win-win situation to create
a bright future for internet security business.
FAQ
1. How much sales of this gate TDZ-B116?
Q: saled about 100pcs
2. Do you have CE /ISO certificate ?
Q:Of course, we can provide CE ISO copy if you want.
3. How can we install this model?
Q:It's easy . we have done many jobs before sending you , you just need connect power cable and fixed
the gate with four screws on the ground, also have complete manual of install and maintenance for reference.
4. If can customized logo?
Q: Yes, can print your customized logo on the gate.
