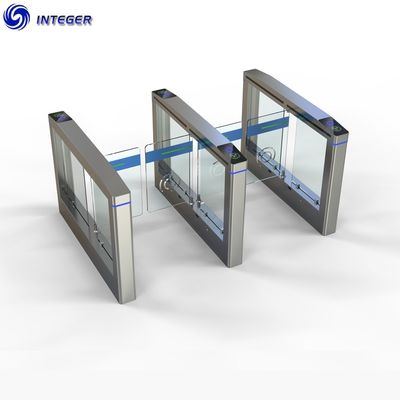

High Speed Sensitivity Automatic Turnstile Gate
Specification
| Motor | Brushless servo motor | ||||||
| Operating life | ≥6 million times | ||||||
| Operating speed | ≥0.5s custom | ||||||
| Number of sensor | 6 pairs, maximum support 8 pairs | ||||||
| Dimension | 1400mm(length)*142mm(width)*1020mm(height) | ||||||
| Barrier Material | 10mm acrylic sheet or stainless steel tube | ||||||
| Housing material | SUS304 1.5mm | ||||||
| Work blocked | Automatic return and forced closing can be selected at will | ||||||
| Track detection | Digital technology 360° monitoring | ||||||
| Memory function | With multiple people to quickly identify and pass | ||||||
| Anti-collision | Can be automatically reset by any impact | ||||||
| Side LED light | Silk screen acrylic, LED backlight | ||||||
| Surface processing | Anti-fingerprint processing on the upper cover | ||||||
| Other materials | 8mm tempered glass sealing plate | ||||||
| Channel width | Custom ≤1200mm, standard is 800mm | ||||||
| Channel width calculation | Block arm width x2=channel width | ||||||
| Lead time | Within six working days | ||||||
Aplication
1. Material #304 Stainless steel makes its shape good looking ,stainless and durable.
Automatically Control, Infrared anti-clip, Anti-collision,With self-check function.
2. Comparible with RF card readers, bar code readers, Biometric readers, push button;
3. One direction or Bi-direction is option.4. Surface Treatment: Brushed surface treatment
5. Arm material: Acrylic tempered glass
6. Application: hotel, hospitals, airport, commercial buildings,ect.
