Name: 304 Stainless Steel Made in China Top Quality High Security Access Control Two Way Flap Turnstile
Brand: 304 Stainless Steel Made in China Top Quality High Security Access Control Two Way Flap Turnstile
SKU: EG-Y010
Price: 531.91 USD
Availability: InStock
Rating: 4.6 (163 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: EG-Y010

Product Name: Electric Flap Gate Barrier Turnstile For Access Control System

Material: 304 Stainless Steel

Colour: Silver

Size: 1200*300*980mm

Production Process: CNC Laser Cutting

MOQ: 1pcs

Power Input: AC100-240V,50/60HZ

Operation Voltage: DC24V, 3A, Power: 40W

Electromagentic: Duty Cycle 100%

Basic Infomation

Model Number: EG-Y010

Payment & Shipping Terms

Packaging Details: Foam+Carton Box+Seaworthy wooden

Product Description

Products Description

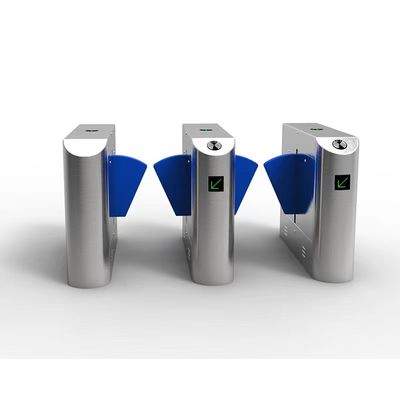

Flap Turnstile

Flap turnstile, one type of the access management equipment, is mainly used for pedestrian access management,with the fast opening safe and convenient characteristics, is the ideal pedestrian high frequency access mangment equipment,organically integrating machinery electronics microprocessor control,and all kinds of different reading and writing equipment. Through figuring all kinds of different reading and writing equipment,and adopting reliable performance safety protection devices real-time alarm system, and direction indicator interface, realizing the access intelligent control and management by the mutual coordination .

Model	EG-Y010
Case Material	SS304(1.2mm, 1.5mm, 2.0mm optional)
Flap Material	Soft PU, Plastic, Acrylic(Color Optional)
Production Process	CNC Laser Cutting
Overall Dimension	1200300980mm(Customization acceptable)
Power input	AC100-240V,50/60HZ
Operation voltage	DC24V, 3A, Power: 40W
Electromagentic	Duty Cycle 100%
Barrier Barrier Arm Length	260mm
Passage Width	600mm
Passage direction	Single directional/Bi-directional(Optional)
Operating time	1S
Throughput Rate	25-30 persons/minute(Normally Closed) or 40 persons/(Normally Open)
reset Time after Power on	3S
MCBF	5,000,000 Cycles
Automatic Reset Function	Automatically locked within set time(Time Adjustable)
LED Indcator	Yes
Operation Humidity	0~95%(No Freezing)
Operation Temperature	-10℃~+50℃
Operation Eenvironment	Indoor,Outdoor(Shelter)
Protection Level	IP45
Communication Interface	TCP/IP
Input Interface	Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA

Transparent Acrylic Flap 15mm thickness flap, flap material Strong Mechanic Component The stamping formed motion machinism offer the stable locking & unlocking Unique Electric Control Centre Speical designed mainboard, airr swtich and postion swithc all-one the water proof box, no rust risk in the drain.

Advantage

1. Adopting special ARM core micro CPU circuit and digital positioning technology, the stable start and control,the more accurate brake arm automatic control ability.

2. Smoothly Running, small noise, simple and reliable restructure.

3. The surface of the movement unit atopting anti-rust and anti-corrosion treatment, durable. Hydraulic movement unit is recommended for scenic spot ticketchecking advice.

4. Providing multiple RJ45 interface and RS485/232 interface, can connect a variety of card reader, magnetic stripe, EMID, MIFARE 1 CI, Ti, and support variety data format, WIEGRAND26, WIRGRAND34, WIRGRAND66, also can connect the bar code reader, fingerprint recognizer, palmprint recognizer, face recognizer, strong compatibility, convenient for system integration.

5. Adopting TCP/IP communications protocol, real-time data upload and real-time data acquisition, facilitating the clients to deal with all kinds of data analysis, and to ensure no data losing due to large amount of data or emergency.

6. Control panel with counting function, LCD/LED display function (optional)

7. High precision sensor group and intelligent recognition algorithm design can identify the number and direction of pedstrians in access very well, greatly improving the accuracy of anti-pinching and anti-trailing.Multi-point detection, more suitable for children or pedstrians with luggage going through.

8. Intelligent voice and sound prompts make the device more user-friendly and easier to use.

9. With auto malfunction inspection and alarm function, convenient for user maintenance and use.

10. Mechanical anti-pinch, infrared sensor anti-pinch function, in the process of turnstile reset obstruction, the motor automatically stop Operation within the set time, reseting after defacult delay time until the reset, small force(≤2kg).

11. Sound and light alarm function: including illegal break-in, trailing alarm.

12. Anti - impact function, the flap automatic locked without the open signal, with automatic reset function, open the gate, the system will automatically cancel the user's access authority if the pedestrians no going through in the set time, automatic reset in 5 seconds after open.

13. Infrared sensor reset, infrared sensor anti-pinch function (standard 3 pairs of infrared ray).

14. After power off, the access automatically open and automatically closed after power on.

15. Available connection with access control system, consumer system, electronic ticket system, biometric identification system, electrostatic tester and other equipments.

16. Single-direction or Bi-direction control pedestrians access, infrared sensor access.

17. Available for remote control and management directly by computer.

More Product

Q1: can we connect your access control system with ours? A: Yes, we provide SDK and software development services with connection ports. Q2: is your revolving door / emergency door waterproof? A: Yes, our revolving gate / emergency gate is waterproof.

Q3: how do we install those revolving doors / barrier doors? Is it easy to do?

Yes, it's really easy to install and we've done most of the work before we sent the product. You just need to screw in the gate and connect the power cable to the Internet cable.

Q4: can you make it according to our size?

A: we can provide customized services according to your detailed requirements, or design unique revolving door products according to your real site to make different sizes, software and functions.
