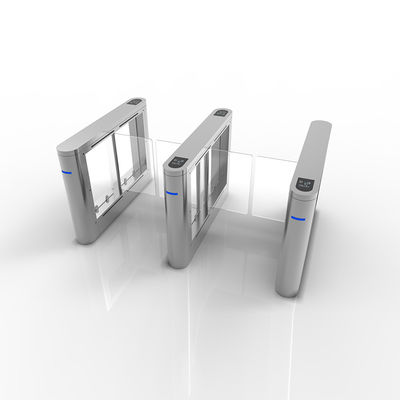

The outline of the product is formed after pressing the stainless steel plate. The shape is featured as a pleasing appearance, a good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the product with read/write facilities. A special control system is equipped in the product to meet the requirement of fire control, so that the smooth passage flow is ensured, realizing a timely diverting of passengers.
Size |
1200×185×980mm |
Material |
Thickness 1.5mm SUS304 |
Pass Width |
<=700mm |
Passage Direction |
Single directional/Bi-directional |
Pass Rate |
35-40 persons/minute |
Operating Time |
0.2 seconds |
Power Input |
AC100-240V,50/60HZ |
Working Voltage |
24V |
Arm Material |
10mm Acrylic |
Application |
Commercial buldings, Airports, Hotels,Governemnt Halls,etc |
Working Environment |
Indoor |
Communication Interface |
RS485, Dry contact |
Mechanism |
Brushed Motor+Encoder+Clutch |
MCBF |
5,000,000 Cycles |
Main Features
Ø Provide normally open / normally close to satisfy management request.
Ø Compatible with RF card readers, bar code readers, biometric readers, push button...
Ø Equipped with infrared photocell, alarm while unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian.
Ø Expanded to automatic identification system, access control system, Traffic control, attendance check and fare collection system etc.
Ø Automatically reset : lock automatically while the pedestrian not pass the lane in the pre-set time after the flap opened. The passing time is adjustable.
Ø Equipped with international interface, can be easily integrated with other R/W device and managed through remote supervision computer
Ø (Optional) Support gate open while power failure and recover N/C mode after power on.
Ø (Optional) Memory function. Can pass N pedestrians continuously by swiping card N times correspondingly (N<=16)
Ø (Optional) Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction after reading the card.
Ø One direction or bi-direction is optional.
Ø Standard/customize housing design (ODM/OEM).
Ø Optional entrance width(500-1000mm) ,glass door size, operation speed.
Ø Banks and insurance companies ,airports
Ø Government buildings and structures
Ø Office buildings,head offices,administrative sites
Ø Schools ,universities and colleges
Karsun Access, Professional manufacturer of Turnstile, Speed gate, Flap turnstile,Swing Turnstile,Full height turnstile ,tripod turnstile, waist height turnstile,Barrier Gate, LPR parking system, Rising bollards, face recognition and other relative accessories. More than 12 years experience i n Intelligent access control field, provide thousands solution for our customer’s project.
Our factory located in ShenZhen GuanLan Liguang Industry park, covers 20000 square meters, more than 300 well trained workers , 20 people R&D team, developing more than 20 new creative Patent products each year. We have 3 large laser cutting machine and 2 bending equipment, output : 2000 sets per day, we could offer fast delivery within 3-5 days for standard model. Strict quality control system , 1 year warranty for all of our products , lifetime durable.
