Aluminum Alloy Heavy Duty Remote Control Automatic Parking Barrier 220V/110V Gate

2 Sets
MOQ
Aluminum Alloy Heavy Duty Remote Control Automatic Parking Barrier 220V/110V Gate
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: SEWO-X660

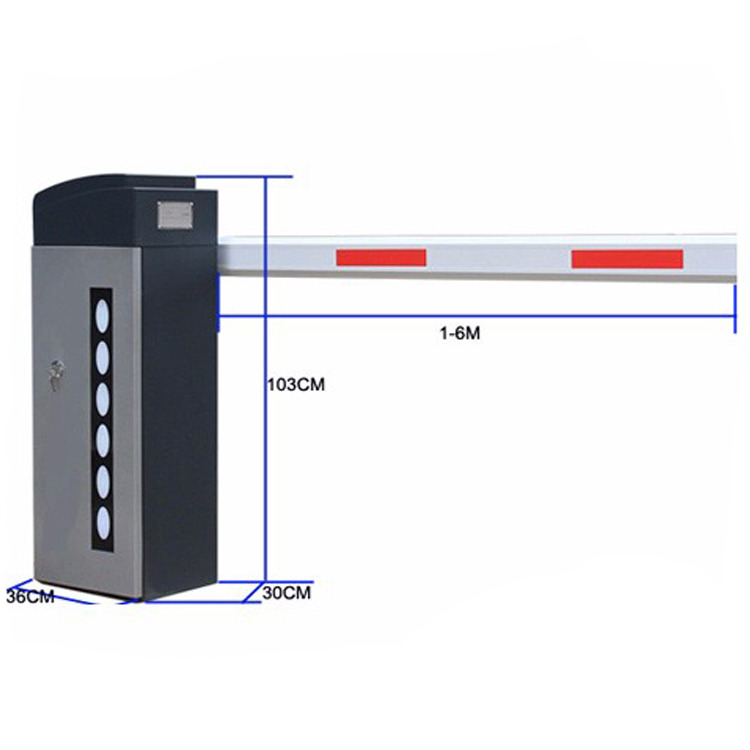

Dimension: 350*300*1050mm
Weight: 60kg
Rail Material: Aluminum Alloy
Rail Lifting Time: 3-6s
Maximum Remote Control Distance: 30m
Motor Speed: 30r/min
Minimum MCBF: 5,000,000 Times
Name: Heavy Duty 220V/110V Remote Control Automatic Parking Barrier Gate
Basic Infomation
Model Number: SEWO-X660
Payment & Shipping Terms
Packaging Details: Standard export carton and Standard export wooden case
Supply Ability: 1000 Set/Sets per Month heavy duty 220V/110V remote control automatic parking barrier
Product Description

heavy duty 220V/110V remote control automatic parking barrier gate,Remote Control Traffic Boom Barrier Gate





Product Description





Introduction:

SEWO-X660 automatic barrier gate had won many national patents. It adapted the latest international technology research and a leading global surface spraying coating treatment technology, advanced moisture-proof processing craft in the machine. The whole equipment is full of leading technology and processing



Technical Parameters:

Dimension350*300*3050mm
Weight65kg
Housing ColorDark grey
Rail TypeStraight
Rail Material Aluminum Alloy
Rail Lifting Time3-6s
Rail Length≤ 6m
MCBF≥5,000,000 times
Motor Speed30r/min
Working Temperature-40°C~70°C
Working EnvironmentIndoor,Outdoor
Relative Humidity≤90%, no condensation

Features & Functions:

  • Manual release even when power failure
  • Machine core with compression spring, effectivelyavoids the accidents caused by spring breaking
  • Die-casting aluminum alloy motor, precision and good at thermal radiating
  • Motor cooling fan, solving the problem of heat-protection
  • Double safety limit switches (photoelectricity limit switch/motor memory sensor)
  • Reversing on obstacle (optional)
  • Auto-closing
  • Support the INFRARED PHOTOCELL for anti-bumping function (optional)
  • Support the external and internal VEHICLE LOOP DETECTOR (optional)
  • Additional illuminated traffic light (red & green) can be added to further enhance safety
SEWO-X660 Inside Structure:



SEWO-X6 Installation in  Iraq:

What you want to know

Before make a specific quotation, please help to confirm the following questions:



1.Left Handed or right handed barrier gate

A left handed or a right handed barrier gate which is important as in Different areas, there are different driving regulations And habits. for example, in china, you need to drive on right side, therefore, you need a right handed barrier gate at Entrance. While in U.K., it is definitely opposite,,  which you can search on google.



2.Open speed & Arm length, different pole length, different speed, different shipping way supported, please consult with sales
