Features Gallery Product Description Request A Quote

Features

Specifications

Material: Stainless Steel

Color: Black

Certificate: CCC

Warranty: 1 Year

Max Boom Length: 6m

Packing: Carton

Feature: Easily Assembled

MTBF: 6000000 Times

Enclosure Rating: IP54

Keywords: Barrier Gate

Basic Infomation

Certification: CCC

Payment & Shipping Terms

Product Description

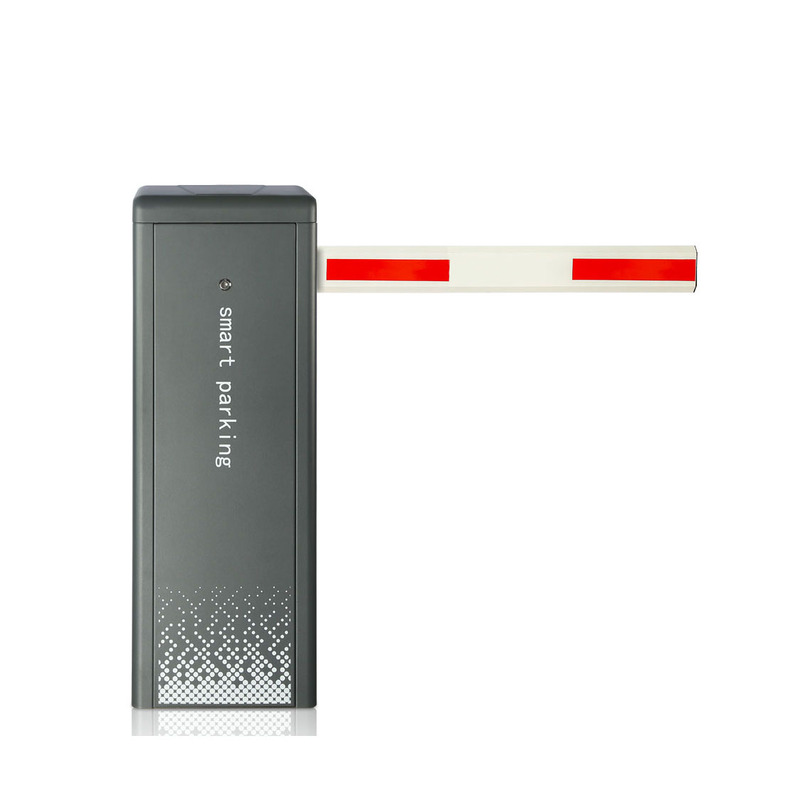

DC Brushless Barrier Gate WJDZE-BL

It can be equipped with WJDZE-BL(1.5-6s) mechanism
Left-installation and right-installation can be exchanged
Alarm against abnormal lifting boom
Support 24-hour continuous operation without heating protection
Speed will reduce when the boom moves to the limited position
RS485 communication, TCP/IP network port

Boom-Type Selection

Functions & Features

1. Driven by DC brushless motor, equipped with movable connecting rod transmission mechanism and balance spring, stable and reliable operation. Motor life cycle up to 2,500,000 times or more, and spring life cycle up to 500,000 times. 2. Built-in delay auto-closing and reverse on an obstacle in case of resistance.
3. Support infrared photocell, loop detector, and external radar, and built-in DC12V power output. 4. Standard fitting with 433MHZ learning code remote control, convenient and quick to add configuration. 5. When power off, the barrier gate can still work by adding 2 external DC12V batteries. And battery charging module is optional, when power on, the battery will automatically charge. 6. Holes are available to fix the articulated or fence boom, and multiple boom types on one machine can be easily changed.

Technical Data

Model

WJDZE-BL (speed 1.5-6s adjustable)

Running Speed

1.5s

5/6s

Boom Type

straight

90 ° folding

180 ° folding

2 fence

3 fence

Max Boom Length

4.5m

Input Voltage

AC 220V±10%, AC110V±10%,50/60HZ

Frequency

50/60HZ

Motor Voltage

DC24V

Enclosure Rating

Ip54

MTBF

2500000 times

Traffic Flow Application

1500 times / 24hours

Working Motor Power

-35°C~+85°C

Max Motor Power

200W

Max Motor Speed

24r/min

WJDZE-BL Machine Core

Optional Accessories

Packing & Delivery

Manufacturing Technique

Company Profile

SHENZHEN WEJOIN MECHANICAL & ELECTRICAL CO., LTD.

Shenzhen WEJOIN Mechanical&Electrical Co. was founded in 2004. It is the first national high-tech enterprise specialized in research and development, manufacturing, and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers in access control and management product. Its main products include automatic barrier gates, tripod turnstiles, flap barriers, swing barriers, etc.

Certifications

Exhibition

FAQ

Q1: What are your main products?
A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Q2: Are you a manufacturer? Do you provide ODM / OEM service?
A: Yes, we are a manufacturer. WEJOIN provides professional customized services for global clients.
Q3: I would like to ask if this is with the RFID card reader and controller?
A: Yes, there is a controller, our barrier gates can connect with RFID card readers.
Q4: What boom types of your barrier gate?
A: We have 1s with 3m barrier arm, 3s with 4.5m barrier arm, 6s with 6m barrier arm, etc
Q5: What is your MOQ?
A: Any quantity is acceptable.
Q6: How much is 1 set? Can provide product details? How fast and how much it would cost to ship this item?
A: Please Click here and send your inquiry, then we will send you the price and details in time.
Q7: How about the payment option?
A: 30% by T/T, 70% by T/T before delivery.
Q8: Do you have a model that can be used outdoors without further shelter?
A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.
Q9: How much warranty time do you have?
A: Within one year, if any problems, we will offer the accessories.
Q10: Do you use WeChat? Can we please talk on WeChat? or WhatsApp?
A: Yes, my WeChat ID FZ15002051250, my phone number/WhatsApp is +86 15002051250, my skype ID wejoin09.
