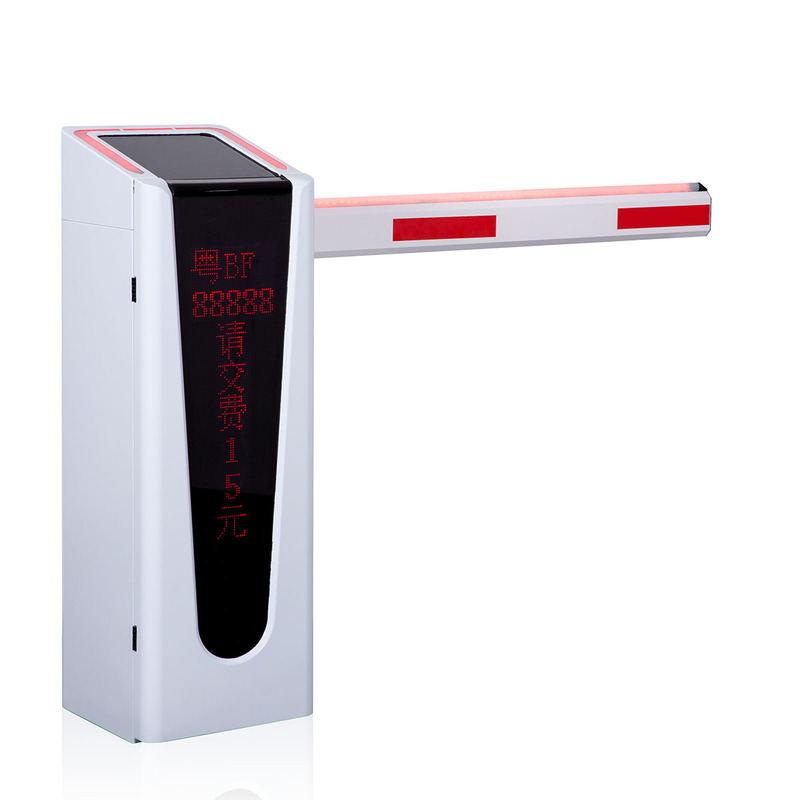

WEJOIN Commercial Servo Barrier Gate WJCB02
DC blushless servo motor with frequency conversion control,
allows for a smooth travel of the gate arm with no bounce in the end position.
Fastest running speed can be 0.4 second (model WJCB02E, 0.4~0.9s adjustable),
100% duty cycle and free-maintenance make the barrier be proper for toll station and parking system!
Boom type selection
Functions & Features
| Model | WJCB02E | WJCB02H | WJCB02I | ||||||||
| Running Speed | 0.4S~0.9s | 0.9s~5s | 5s | 5s | 5s | 5s | 3s~5s | 5s | 5s | 5s | 5s |
| Boom Type | Carbon Steel Straight | Straight | 90° Folding | 180° Folding | 2 Fence | 3 Fence | Straight | 90° Floding | 180° Folding | 2 Fence | 3 Fence |
| Max Boom Length | 2m~3.5m | 3.5m~6m | 5m | 4m | 4.5m | 4m | 4.5m~8m | 6m | 5m | 6m | 5m |
| Input Voltage | AC 220V±10%, AC110V | ||||||||||
| Motor Voltage | DC310V | ||||||||||
| Enclosure Rating | IP54 | ||||||||||
| Working Temperature | -35°C~+85°C | ||||||||||
| MTBF | 10000000 times | ||||||||||
| Duty Cycle | 100% | ||||||||||
| Traffic Flow Application | 24 hours uninterrupted operation | ||||||||||
| Max Motor Power | 300W | ||||||||||
| Max Motor Speed | 90r/min | ||||||||||
| Max Torque | 480N.m | ||||||||||
Optional Accessories
WEJOIN CB02 Series Barrier Gate Cabinet Type Selection
Packaging
| Size | 102 (L) * 37(W) * 47 (D) |
| Weight | 60 KG |
| Packaging Details | The normal package is paper carton (Size: 102*37*47 cm). If wooden box is needed to export overboard, the wooden box will be fumigated.If container is too tigher,we will use pallet or pack it according to customers special request. |
| Size | 615 (L) * 11 (W) * 5 (D) |
| Weight | 6.6 KG |
| Packaging Details | The normal package is foam paper. If wooden box is needed to export overboard, ,the wooden box will be fumigated. |
Our Service
| Payment Term | Leading Time | Minimum Order | Supply Ability | Package |
| T/T; West Union | 5-7 working days | 1 Unit | 10,000 Unit/ Month | Paper Carton or Wooden Box |
