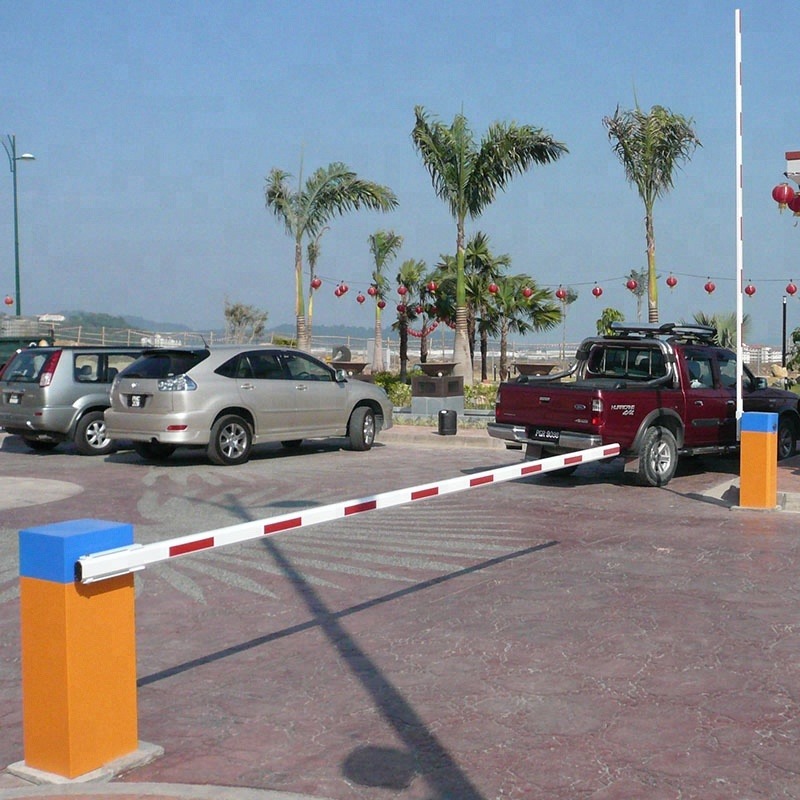

The WEDZ101 barrier gate, which manufactured by our company, adopt the latest automatic technology and intelligent design ahead in this field. Meanwhile our barrier gates have the progressive design, such as humanization clutch device, balance device(e.g), which makes our barrier gate work more safely and conveniently. This barrier gate is suitable for indoor as well as outdoor parking area, Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc.
Dual Speed Mechanism
Production Series
| Model (WJDZ) | Open / Close Speed | Max Boom Length | Boom Type |
|
101-11 |
1 sec | 3 m | Straight |
| 101-13 | 3 sec | 4.5 m | |
| 101-16 | 6 sec | 6 m | |
| 101-23 | 3 sec | 3 m | 90° folding |
| 101-26 | 6 sec | 5 m | |
| 101-33 | 3 sec | 3 m | 180° folding |
| 101-36 | 6 sec | 5 m | |
| 101-46 | 6 sec | 4.5 m | 2 fencing |
| 101-56 | 6 sec | 4 m | 3 fencing |
Technical Specification
| Working Temperature | -40℃~+75℃ |
| Voltage | 220V±10%, 110V±10%, 50/60HZ |
| Rated power | 80W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Net weight | 60kgs |
| Arm Speed | 1s, 1.8s, 3s, 6s |
| Max boom length | 8 meters |
1) Manual realease
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking;
3) Die-casting aluminum alloy motor, precision and good at thermal radiating;
4) Motor cooling fan, solving the problem of heat-protection;
5) Double safety limitswitches (photoelectricity limit switch/motor memory sensor);
6) Reversing on obstacle;
7) Auto-closing;
8) Support the In frared Photocell for anti-bumping function(optional);
9) Support the external and internal Vehicle Loop Detector;
10) Traffic light interface;
11) Wire Control ( switch signal) / remote control (418 HZ/433 HZ );
12) RS485 Communication module (optional).
Advanced Features
Function: Unti-bumping
The barrier will automatically go back when meet obstacles during closing.
Function: Swing-out boom holder
Arm will swing out when hit directly by vehicle to avoid further damage on the vehicle.
Functio: Clutch Key
Clutch key can be used to release the clutch when power off.
Feature: Exactitude aluminum alloy die-casting motor
Exactitude aluminum alloy die-casting motor base reduces the noise and joint abrasion to prolong the barrier gate working life.
Double limit ways (electronic limit and motor sensor memory limit) for boom rising and falling.
Special spring device--- both the compression spring and tension spring can be used in the machine. Using the compression spring can avoide accidents caused by the tesion spring.
All Product Tests Before Delivery
WEJOIN utilizes advanced testing equipment and various testing methods in all production processes.
Shenzhen Weijoin Mechanical&Electrical Co. was founded in 2004. It is the first national high-tech enterprise speciallized in research and development, manufacturing and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers in access control and management product. Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Packaging
| Size | 102 (L) * 37(W) * 47 (D) |
| Weight | 60 KG |
| Packaging Details | The normal package is paper carton (Size: 102*37*47 cm). If wooden box is needed to export overboard, the wooden box will be fumigated.If container is too tigher,we will use pallet or pack it according to customers special request. |
| Size | 615 (L) * 11 (W) * 5 (D) |
| Weight | 6.6 KG |
| Packaging Details | The normal package is foam paper. If wooden box is needed to export overboard, ,the wooden box will be fumigated. |
Our Service
| Pyment Term | Leading Time | Minimum Order | Supply Ability | Package |
| T/T; West Union | 5-7 working days | 1 Unit | 10,000 Unit/ Month | Paper Carton or Wooden Box |
Q: What's WEJOIN monthly production capacity for barrier gate?
A: 10000 units.
Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
Q: What’s the remote control distance?
A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
