Features

Specifications

Material: Stainless Steel

Color: Yellow

Certificate: CCC

Warranty: 2 Year

Max Boom Length: 6m

Packing: Carton

Feature: Easily Assembled

MTBF: 10000000 Times

Enclosure Rating: IP54

Keywords: Barrier Gate

Basic Infomation

Certification: CCC

Payment & Shipping Terms

Product Description

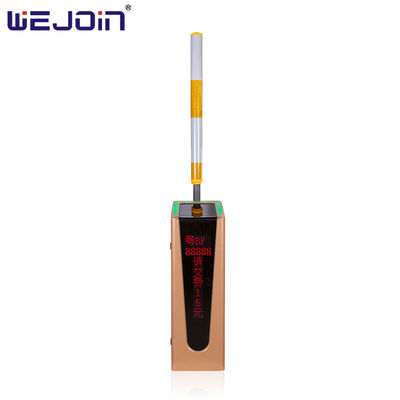

CB02 Commercial DC Barrier Gate

MTBF: ≥10 million opening and closing cycles
It can be equipped with CB02E(0.6-2S), CB02H(0.9-5S), and CB02I(4-8S)mechanism
Left-installation and right-installation can be exchanged
Super torque, High precise control, Three spring balance mechanism
Alarm against abnormal lifting boom
Support 24-hour continuous operation without heating protection
LCD function display controller
Electronic clutch design
Speed will reduce when the boom moves to the limited position
RS485 communication, TCP/IP network port
A DC12V power supply is optional

Boom-Type Selection

Model	WJCB02E
Running Speed	0.6S-2S
Boom Type	Carbon Steel Straight
Max Boom Length	3m-3.5m
Model	WJCB02H
Running Speed	0.9s-5s	5s	5s	5s	5s
Boom Type	straight	90° Folding	180° Folding	2 Fence	3 Fence
Max Boom Length	3.5m-6m	5m	4m	4.5m	4m
Model	WJCB02I
Running Speed	4s-8s	5s	5s	5s	5s
Boom Type	straight	90° Folding	180° Folding	2 Fence	3 Fence
Max Boom Length	4.5m-8m	6m	5m	6m	5m
Input Voltage	AC 220V±10%, AC110V±10%,50/60HZ
Motor Voltage	DC 24V
Enclosure Rating	IP54
Working Temperature	-35°C~+85°C
MTBF	10000000 times
Duty Cycle	100%
Traffic Flow Application	24 hours uninterrupted operation
Max Motor Power	300W
Max Motor Speed	90r/min
Max Torque	480N.m

Functions & Features

1. DC brushless motor with frequency conversion control, allows for a smooth trip of the boom.
2. Superior performance, which utilizes the updated electronic control and machinery processing technology, has high control precision, high torque density, good torque balance, low power consumption, high efficiency, less heat, and low noise.
3. Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4. Three tension spring crank transmission design, for a more stable and reliable structure. (patented technology)
5. No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
6. Reversing more sensitivity and reacting faster when countering obstacles.
7. With counting, delay auto-closing, auto-aging test, alarm when lifting boom without permission, motorcade passing function.
8. LCD display controller, more humanized operation, and setting.
9. NO/NC wire control signal input is optional.
10. Integrated RS485 communication, infrared photocell, loop detector interface, radar module, and more secondary development.

Packing & Delivery

Manufacturing Technique

Company Profile

SHENZHEN WEJOIN MECHANICAL & ELECTRICAL CO., LTD.

Shenzhen WEJOIN Mechanical&Electrical Co. was founded in 2004. It is the first national high-tech enterprise specialized in research and development, manufacturing, and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers in access control and management product. Its main products include automatic barrier gates, tripod turnstiles, flap barriers, swing barriers, etc. All the products have CE certificates and have been exported to more than 100 countries or regions, such as Germany, British, Spain, Czech, France, Malaysia, India, and so on.

Certifications

Exhibition

FAQ

Q1: What are your main products?
A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Q2: Are you a manufacturer? Do you provide ODM / OEM service?
A: Yes, we are a manufacturer. WEJOIN provides professional customized services for global clients.
Q3: I would like to ask if this is with the RFID card reader and controller?
A: Yes, there is a controller, our barrier gates can connect with RFID card readers.
Q4: What boom types of your barrier gate?
A: We have 1s with 3m barrier arm, 3s with 4.5m barrier arm, 6s with 6m barrier arm, etc
Q5: What is your MOQ?
A: Any quantity is acceptable.
Q6: How much is 1 set? Can provide product details? How fast and how much it would cost to ship this item?
A: Please Click here and send your inquiry, then we will send you the price and details in time.
Q7: How about the payment option?
A: 30% by T/T, 70% by T/T before delivery.
Q8: Do you have a model that can be used outdoors without further shelter?
A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.
Q9: How much warranty time do you have?
A: Within one year, if any problems, we will offer the accessories.
Q10: Do you use WeChat? Can we please talk on WeChat? or WhatsApp?
A: Yes, my WeChat ID FZ15002051250, my phone number/WhatsApp is +86 15002051250, my skype ID wejoin09.
