Home /Products/Electric Parking Gate/Classic cost-effective car park access control system for mall maximum 50 entrance & exit 50

Classic cost-effective car park access control system for mall maximum 50 entrance & exit 50

1.0 Sets
MOQ
Classic cost-effective car park access control system for mall maximum 50 entrance & exit 50
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Parking Revenue System
Model Number: DASHOU
Warranty: 12 Months
Loading Capacity: Max. 50 Entry & 50 Exit
Communication: TCP/IP
Software: Web-based
Ticket Capacity: 3000 PCS. Barcode
Payment: Central Pay
Charging Standard: Customizable
Card Reader: ID/IC / Long Range RFID
Display: LCD/LED
Voice Prompt: Optional
Intercom: Optional
Image Capture: Optional
Basic Infomation
Model Number: DASHOU
Payment & Shipping Terms
Packaging Details: Entry/Exit Station---carton Barrier Gate---carton Boom Arm---plywood box (at your cost) All cartons on pallet
Supply Ability: 500 Set/Sets per Month
Product Description
Product Description


Classical Cost Effective Car Park Access Control System for mall


V32-910C Central Pay is a TCP/IP based ticketing Parking Management System for managing pay-to-park facilities with high traffic flow, for both hourly parkers (visitors) and season parkers (members). It is ideal solution for parking lots of premises such as shopping mall, airports, hotel, exhibition center, hospital and apartment etc.


Web-based management software helps you remotely and centrally manage multi parking lots anywhere and anytime.

API provides easy integration of parking system with your own system.

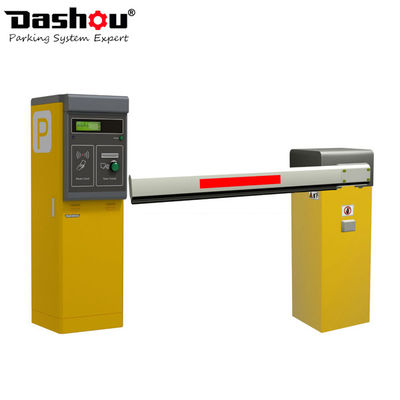

System Components


① Entry Station

② Exit Station

③ Barrier Gate
⑥ Computer
⑧ Loop Detector & coil


Web-based Software

Charging Software

Central Server

Charging QR Scanner

④ CCTV Cameras *

⑤ Parking Space Display *

⑦ Parking Fee Display *


Traffic Lights *

Voice Prompt *

Intercom *

Cash Box *

Receipt Printer *

Remark: items marked * are optional


How does Parking System works---For Hourly Parkers (Visitors)

See video at https://youtu.be/nwV5ZLlOL8I
----- A vehicle approaches entry and triggers Loop Coil of Entry Station
----- The visitor presses ticket button of Entry Station to get a QR Code ticket
----- Entry Barrier opens automatically, and it closes automatically after the vehicle passes loop coil of Entry Barrier
----- He walks to the charging point which is located in central place instead of the exit, and gives the ticket to the cashier
----- The cashier scan the ticket by a QR scanner connected to Charging PC, and payment info. will be shown on the display
----- The visitor pays cash, then the cashier return back the ticket to him
----- Within given time he drives to the exit and inserts the ticket into unmanned Exit Station, and then Exit Barrier open
----- Exit Barrier closes automatically after the vehicle passes the loop coil of Exit Barrier.

How does Parking System works---For Season Parkers (Members)

See video at https://youtu.be/w8f44drYOJw
----- A vehicle approaches entry and triggers Loop Coil of Entry Station
----- The visitor swipes proximity card onto the proximity card reader built-in Entry Station
Or long range RFID tag on window shield was read by long range RFID Reader
----- Entry Barrier opens automatically, and it closes automatically after the vehicle passes loop coil of Entry Barrier
----- Same will happen at exit



Web-based Management Software

Web-based management software was pre-installed into the Central Server before delivery, which helps you remotely and centrally manage multi parking lots anywhere and anytime.



API for Easy Integration
With the open Dashou system and its flexible interfaces (API provided), you can easily and securely integrate Dashou parking system with the third party system such as APP on smartphone.



Customizable Charging Standards

The software provides several customized charging standards, each comprises of several sub items such as free time, charging rates during different periods, charging fee during the night etc. Customized charging standards matches all your charging requirements.

Centralized Report Helps you Increase Sales
Dashou reporting solutions give you access to all datas such as turnover, number of parking customers, etc. - for single or multiple facilities. Reports helps you understand how to improve the operations quality and therefore increase your sales, as well as for your internal auditing, and to analyze customer behavior to steer the development of customized products.



Classical-design Heavy Duty IP54 Cabinet

The cabinet adopts 2mm precise machining cold-rolled plate and static electricity sprayed anti-UV surface which is non- scale and unfading, conformed to the IP54 dust-proof and water-proof. Classical design also decorates your premises.



Customizable LCD/LED & Voice Prompt

The entry & exit station can be equipped with LCD or LED screen on which detailed operation and system info. are simply and friendly shown. Voice Prompt gives a warm-hearted welcome and operation guide to parkers. Both LCD and voice prompt can be customized.



Unmanned Entry & Exit
Unmanned entry & exit helps you reduce labor cost. Hourly parkers themselves take QR code ticket from Entry Station, season parkers get access by self-service swiping their cards on Entry Station, or enter w/o stop if window shield tag is read by long range reader.



High Capacity Ticket Box

High capacity of 3000 thermal tickets (175g) makes it unnecessary to change paper in the ticket box frequently. Ticket box can also dispense tickets quickly and steadily at speed of 0.5 second.



“Image Comparison” Make Parking Safe

When vehicle leaves at the exit, two photos respectively taken by CCTV cameras (installed at entry and exit) will be shown together side by side on PC for comparison, to ensure it is the same vehicle in and out.






Customizable QR Code Ticket (optional)

Some parking lots may require different ticket format which conform with reading habit of natives, some may want the ticket to show charging rate, some want to put their name or blessing on the ticket for advertisement and attract more customers. Customizable ticket now matches all your unique needs. This will be done in the management software.










Customizable Receipt (optional)

By connecting a printer to charging PC, you can print out receipt which can be customized on the charging software upon your unique requirements, even receipt required by your tax bureau.









Customizable Parking Coupon
Some shopping malls issue parking coupons to customers for long term relationship. Different types of coupon can be created on the parking management software and sold to shops or end users to deduct parking fee.


Entry/Exit Station and PC Work Separately

Entry Station and Exit Station separately work fine without connecting to a PC. The data stored in Central Server, Entry Station and Exit Station will be automatically uploaded to a computer if connected.


'One-card-one-vehicle'

With this function, other season parkers can not use the same card to enter before the owner of this card leave parking lot. It ensures safety for season parkers` vehicle and avoids loss of parking fee for owner of parking lot.



Recommended Hot Sale Models

Company Profile

Xiamen Dashou Technology Ltd.

A leading manufacturer and solution provider for Vehicle Access Control System including Parking Management System, Parking Guidance System, Barrier Gate and Parking Lock with 16 years history.

The 2,000 sqm factory and office is equipped well with modern facilities and 100 skilled employees. We have passed the ISO9001:2008 quality management system. With strong R&D, new products are launched every quarter, and customization is available in a short time.
Worldwide Projects
Certifications
Exhibition & Clients
Terms & Conditions

1. Warranty:       1 year
2. Certificates:  CE
3. MOQ:             1 set
4. OEM:             Available
5. Lead time :  3~5 working days against payment
