Features Gallery Product Description Request A Quote

Features

Specifications

Color: Yellow

Boom: Optional

Voltage: 220V/110VÂ±10%

Usage: Road Traffic Safety

Warranty: 3 Years

Feature: High Durable

Certificate: CE,ISO9001

Packing: Carton

Material: Stainless Steel

Keyword: Barrier Gate

Basic Infomation

Certification: CE,ISO9001

Payment & Shipping Terms

Packaging Details: carton or wooden case

Supply Ability: 10000 Set/Sets per Month barrier gate

Product Description

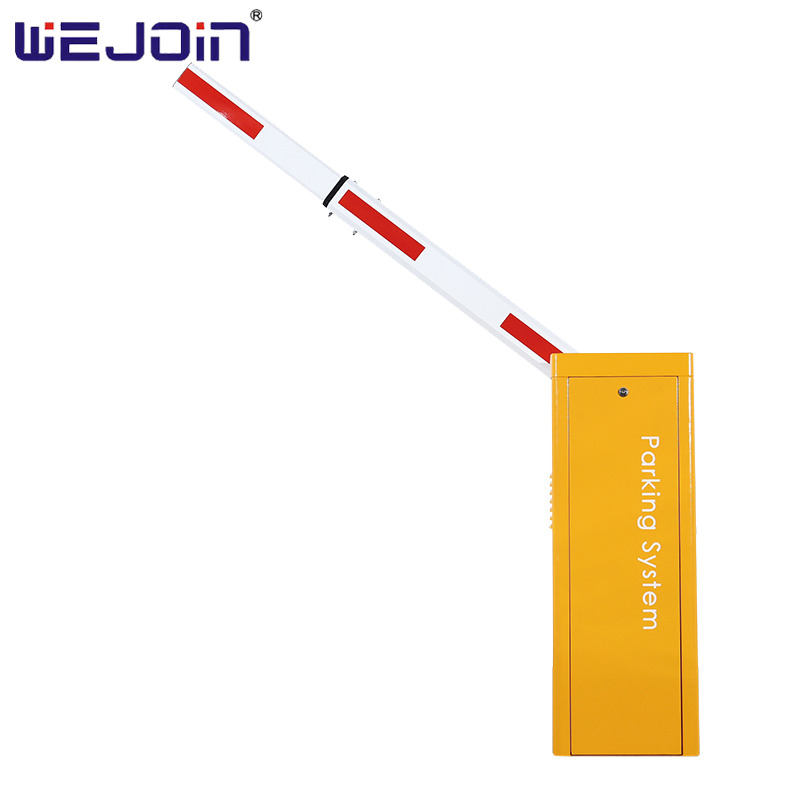

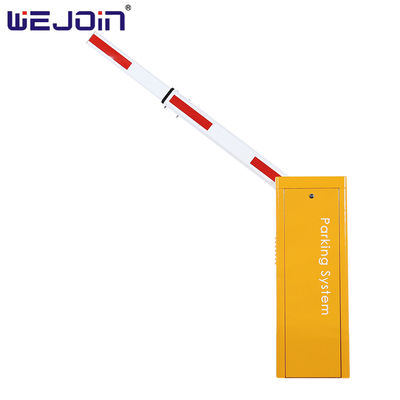

WEJOIN Barrier Gate DZJ

The WEJOIN DZJ barrier gate, which is manufactured by our company, adopts the latest automatic technology and intelligent design ahead in this field. Meanwhile, our barrier gates have an advanced design, such as a humanization clutch device, balance device(e.g), which makes our barrier gate work more safely and conveniently. This barrier gate is suitable for indoor as well as outdoor parking areas, parking lots, toll gates, goods yards, railway crossing, commercial premises, apartment, block access, shopping malls, hospitals, stadiums, business centers, etc.

Boom-Type Selection

Model

801J-13

801J-16

801J-23

801J-26

801J-33

801J-36

801J-46

801J-56

Running time

Boom type

Straight

(Telescopic arm is optional)

90° folding

180° folding

2 fencing

3 fencing

Max boom length

4.5m

3.5m

Boom dimension

45x100mm

Voltage

AC220V±10%, AC110V±10%

Frequency

50/60HZ

Humidity

≤90%

Power Consumption

200W

Working temperature

-35℃~+75℃

Protection grade

IP54

Housing Dimension

(W*D*H)

335*285*925mm

MTBF

5000000 times

Net Weight

40KGS

Gross Weight

45KGS

Functions & Features

1). Wheel manual release. In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually. When power is on, the motor will work normally.
2). Machine core with strong and double springs, make the machine core works more steadily.
3). Die-casting aluminum alloy motor, precise and good at thermal radiation.
4). Crank and rod structure makes the boom run placidly.
5). Double safety limit switches (photoelectricity limit switch and motor memory sensor).
6). Reversing on the obstacle.
7). Auto-closing.
8). Support the infrared photocell for antibumping function (optional).
9). Support loop detector (optional).
10). R&G light interface (AC220V, can support lamp with 40W).
11). Wire control (switch signal)/Remote control (418MHZ).
12). Digital limit, more precise.
13). Open, close control interface for parking system.
14). Provide limit state signal to the parking system.

Packing & Delivery

Manufacturing Technique

Company Profile

SHENZHEN WEJOIN MECHANICAL & ELECTRICAL CO., LTD.

Shenzhen WEJOIN Mechanical&Electrical Co. was founded in 2004. It is the first national high-tech enterprise specialized in research and development, manufacturing, and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers in access control and management product. Its main products include automatic barrier gates, tripod turnstiles, flap barriers, swing barriers, etc. All the products have CE certificates and have been exported to more than 100 countries or regions, such as Germany, British, Spain, Czech, France, Malaysia, India, and so on.

Certifications

Exhibition

FAQ

Q1: What are your main products?
A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Q2: Are you a manufacturer? Do you provide ODM / OEM service?
A: Yes, we are a manufacturer. WEJOIN provides professional customized services for global clients.
Q3: I would like to ask if this is with an RFID card reader and controller?
A: Yes, there is a controller, our barrier gate can connect with an RFID card reader.
Q4: What boom types of your barrier gate?
A: We have 1s with 3m barrier arm, 3s with 4.5m barrier arm, 6s with 6m barrier arm, etc
Q5: What is your MOQ?
A: Any quantity is acceptable.
Q6: How much is 1 set? Can provide product details? How fast and how much it would cost to ship this item?
A: Please Click here and send your inquiry, then we will send you the price and details in time.
Q7: How about the payment option?
A: 30% by T/T, 70% by T/T before delivery.
Q8: Do you have a model that can be used outdoors without further shelter?
A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.
Q9: How much warranty time do you have?
A: Within one year, if any problems, we will offer the accessories.
Q10: Do you use WeChat? Can we please talk on WeChat? or WhatsApp?
A: Yes, my WeChat ID FZ15002051250, my phone number/WhatsApp is +86 15002051250, my skype ID wejoin09.
