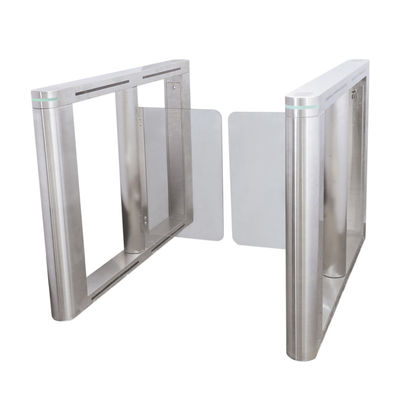

Access Control Swing Barrier Anti-tailgating Baffle Gate Turnstile with SDK
Baffle Gate Turnstile Technical Specifications
| PARAMETERS | DATA |
| Casting material | SS304 material thickness is no less than 1.5mm |
| Power supply | AC 220/110V ±10%, 50Hz / 60Hz ±10% |
| Drive unit | DC 24V |
| Power consumption | 30W |
| Operatigng temperature | (-30), (+75)°c |
| Communication | RS485/TCP |
| Pole steering | Bi-direction |
| Passage width | less than 600 mm |
| Relative humidity | ≤95%, no condensation |
| MCBF | over 5 million cycle |
| Pass speed | 30 person per minute |
| Reset time | 10 seconds |
| Opening gate time | 0.2 to 0.5 seconds |
| Weight | 70kg (single) |
| Dimension | 1400*990*160mm |
| Protection class | IP44 |
| Surface finishing | Electrostatic powder coated and stainless steel can be produced in desired and dimensions. |
Access Control Swing Barrier Features
1. Super slim and fast access.
2. Fault detection function, easy to use and maintenance.
3. The running status can be programmed and controlled with the built-in keyboard on the main board.
4. Mechanical anti-pinch function.
5. Anti-breakthrough function. The gate is locked automatically until opening signal received.
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
7. Can be used with variety of card readers: IC / ID card readers, facial recognition, barcodes, fingerprints, etc. (for access controller)
8. Direction can be set as Single-direction or Bi-direction.
9. Gate auto opens when power off, auto close when power on, complying with fire safety requirements.
10. Counter function for optional.
11. System run with self-checking function, and seft fault prompt function.
12. Anti-collision function.
SXK-TB105 Swing Barrier Gate Benefits
Enhanced Security
Modularity
Areas of Applications
Reliability
Security packing way with anti static bag, customized box or carton, bubble foam, wooden case safety packing.
For 13 years, ThinkPark company occupies the first position in the sales market of Access Control Industry. Thanks to a professional team who works on car parking system, barrier gates, tripod turnstile, parking guidance system, license plate recognition system and door access control system approach to each client, the company has proved to everyone that vending business is simple and profitable.
Our experience allows to create highly effective products with good value of money, which successfully competes on the global market of barrier gates. Top produce and assembly the barrier gates we use reliable components from well-know international companies.
The main advantages cooperation with us
Certifications
Why choose us?
Related search tag
Turnstiles, pedestrian barrier gate,turnstile gate, tripod turnstile gate, rfid turnstile gate, turnstile tripod, flap barrier, swing barrier gate, swing barrier, swing barrier turnstile, full height turnstile gate, access control turnstile, access control system, etc.
