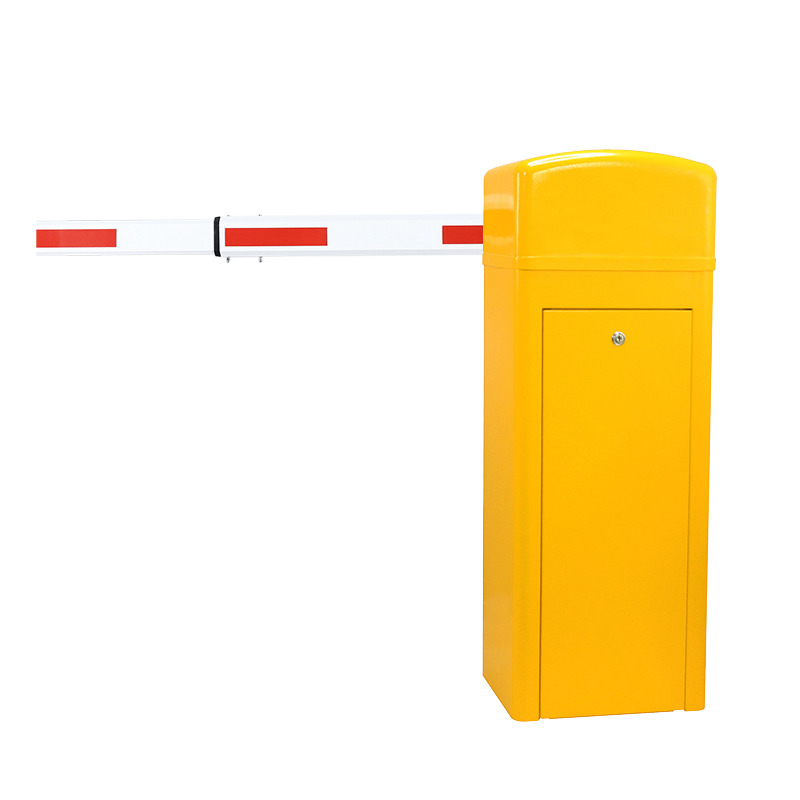

WEJOIN Mid-Grade Servo Barrier Gate WJDZ04SV
DC Brushless Servo Motor
Higher Stability, Longer Sercive Life and Easier Operation
Boom Type Selection
Functions & Features
1). DC permanent magnet synchronous motor(PMSM), servo control.
2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power conaumption, high efficiency and low noise.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). More sensitive and reacting faster when reversing on obstacles.
8). With counting, delay auto-closing, and auto-aging test function.
9). 4-digit digital tube display, displays more information.
10). NO/NC wire control signal input are optional.
11). Integrated RS485 communication, infrared photocell and loop detector interface. RJ45 network, loop detector, and radar module can be added.
Technical Data
| Model | WJDZ04SV1 (speed 3~5s adjustable) | |||||
| Running Speed | 3S | 4S | 5S | 5S | 5S | 5S |
| Boom Type | Straight | Straight | Straight | 90° Folding | 2 Fence | 3 Fence |
| Max Boom Length | 4.5M | 5M | 6M | 5M | 4.5M | 4M |
| Model | WJDZ04SV2 (speed 1.5~5s adjustable) | |||||
| Running Speed | 1.5s | 2/3/4/5s | 5s | 5s | 5s | |
| Boom Type | Straight | Straight | 90° Folding | 2 Fence | 3 Fence | |
| Max Boom Length | 3.5m | 4.5m-6m | 4m | 4.5m | 4m | |
| Housing Dimension | 362*325*1030mm | |||||
| Input Voltage | AC220V±10%,AC110V±10% | |||||
| Frequency | 50/60HZ | |||||
| Motor Voltage | DC310V | |||||
| Enclosure Rating | IP54 | |||||
| Working Temperature | -35°C~+85°C | |||||
| MTBF | 4000000 times | |||||
| Traffic Flow Application | 3000 times/24hours | |||||
| Max Motor Power | 150W | |||||
| Max Motor Speed | 24r/min | |||||
| Max Torque | 240N.m | |||||
Machine Core and Controller
WEJOIN DZ04SV/DZE/DZJ Series Barrier Gate Spring Selection Table
| Boom Type | Boom Length Meter:M | Spring Diameter ∅ (mm) |
| Straight Boom without Rubber | 6 ≥ L ≥ 4.8 | ∅5.5 + ∅4.5 |
| 4.8 > L ≥ 3.5 | ∅5.5 | |
| 3.5 > L ≥ 2.5 | ∅4.5 | |
| Straight Boom with Rubber | 6 ≥ L ≥ 5.3 | ∅6.8 + ∅4.5 |
| 5.3 ≥ L ≥ 4.3 | ∅5.5 + ∅4.5 | |
| 4.3 > L ≥ 3.5 | ∅4.5 + ∅4.5 | |
| 3.5 > L ≥ 3 | ∅5.5 | |
| 3 > L | ∅4.5 | |
| Articulated Boom | 5 ≥ L ≥ 4.3 | ∅5.5 + ∅4.5 |
| 4.3 ≥ L ≥ 3 | ∅4.5 + ∅4.5 | |
| 3 > L | ∅4.5 | |
Fence Boom, Two-levels | 4.5 ≥ L ≥ 4.3 | ∅6.8 + ∅5.5 |
| 4.3 > L ≥ 3.8 | ∅6.0 + ∅5.5 | |
| 3.8 > L ≥ 3 | ∅5.5 + ∅4.5 | |
| 3 > L | ∅4.5 + ∅4.5 | |
Fence Boom, Three-levels | 4 ≥ L ≥ 3.8 | ∅6.8 + ∅5.5 |
| 3.8 > L ≥ 3.3 | ∅6.0 + ∅5.5 | |
| 3.3 > L ≥ 2.5 | ∅5.5 + ∅4.5 |
Spring Color Distinction
| ∅4.5 | ∅5.5 | ∅6 | ∅6.8 |
| Red | Blue | Green | Yellow |
DZ04SV Series Optional Barrier Cabinet
Optional Accessories
| Size | 102(L)*37(W)*47(D) |
| Weight | 60 KG |
| Packaging Details | The normal package is paper carton (Size:102*37*47 cm). If wooden box is needed to export or pack it according to customers special request. |
| Size | 615(L)*11(W)*5(D) |
| Weight | 6.6 KG |
| Packaging Details | The normal package is foam paper. If Wooden box is needed to export overboard, the wooden box sill be fumigated. |
Our Service
| Pyment Term | Leading Time | Minimum Order | Supple Ability | Package |
| T/T;Westuinon | 5-7 Working days | 1 Unit | 10000Unit | Paper Carton of or Wooden Box |
