Outdoor Parking Lot LPR Camera Security License Plate Recognition System

Parking lot LPR camera security license plate recognition system

WENCAN parking management system is the smartest and most popular vehicle parking access control systems for pay-to-park parking lot management. They are widely used in worldwide parking occasions like commercial building, shopping center, exhibition center, hospital, airport, real estate, public parking lot etc.

How does LPR system works:Worldwide license plate recognition support.

1. Entrance procedure
A vehicle stops in front of the entrance, just before the barrier. The sensor detects its presence and a dedicated camera automatically recognizes and records the number plate, date and time of entry. The remote management system captures the data provided by the camera and enters it into the database. If already registered, the subscriber’s membership information and reservation data are added. The entrance barrier rises allowing the driver access to the car park. The barrier lowers automatically, once a vehicle passes the safety sensor.
Drivers of vehicles registered with an online account can enter and exit nominated car parks unimpeded. Parking charges are automatically debited from their nominated credit/debit cards at regular intervals via an online account.
2. Exit procedure
A vehicle stops at the exit, just before the barrier. The sensor detects its presence and the dedicated camera
verifies the number plate against payment information, or the listing of the vehicle on the database (e.g. subscribers). The management system validates correct payment, or entitlement to park without payment to enable exit. The exit barrier rises, allowing the driver to leave the car park. The barrier lowers automatically once a vehicle passes the safety sensor.

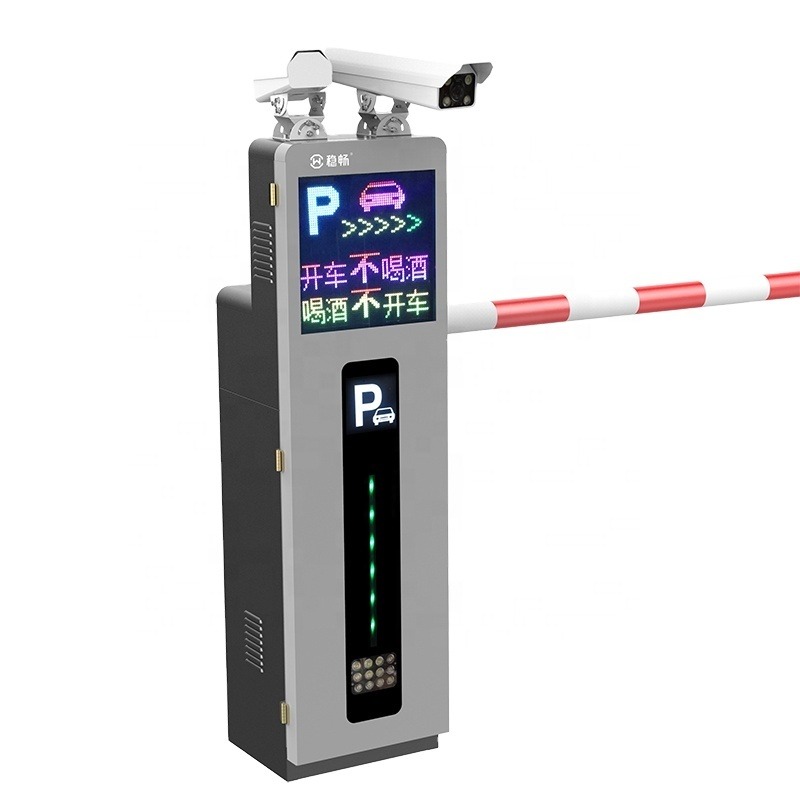

System Overview:

1 Booth- This structure is the working place for parking lot manager. They can manage entering vehicles and collect parking fee from leaving vehicles in this place.

2 Island- Structure for installation booth, barrier and LPR device.

3 Barrier- In order to control entering vehicles efficiently, barrier is installed in heavy traffic area and in case of need access control vehicles such as entry/exit.
4 LPR device- LPR device takes images of entering/leaving vehicles with high-definition meag pixel camera and it automatically recognizes plate number then access control/manage vehicles

5 LPR display unit- Install and link with LPR device, display recognized vehicles' information and commutation driver information.

6 Loop coil is laid at entry of parking lot. The device will receive high frequency signal current from vehicle detector and make a magnetic field near loop coil. Once vehicle pass this field, send impedance changes to detector and convert voltage and amplify them and send detect information signal to booth.

Description

Straight lane is the best type to recognize plate No. and ANPR camera can take an image of max.3.5m width. If ANPR device is installed more than 3.5m road width, vehicle guide equipment (ex. plastic rod, signboard, etc.)should be installed. In case of installation speed bump the size of bump must be road width. If speed bump size is smaller than road width, driver would not approach straight way to avoid speed bump, then ANPR camera cannot capture clear and accurate image for recognition.

1. Can identify vehicle license text and figures

2. Can identify one line and two lines license plate number

3. Can recognize 0-2 letters and numbers 1 to 4 for the license plate number

4. Can identify Chinese and English of license plate number

5. The database can store the capture image, license plate number, lane number and the time of vehicle through record.

6. License plate number entrance and exit record can report output

7. Support English, Korean, Simplified Chinese and Traditional Chinese and other language customizable.

8. Image size: 768*576pixels

9. Front size: 16*16-48*64 pixels

10. Camera gun level angle: the maximum angle 25 degree into the drive lane

11. Camera gun vertical angle: the maximum angle 25 degree into the horizontal

12. Minimum brightness: 500lux

Barrier Gate Specification

About WENCAN

Shenzhen WENCAN technology Co., Ltd is a professional Hi-Tech enterprise specialized in the research development and manufacturing of parking system and turnstile gate system with over 10 years’ experience in smart car park industry. Our main product lines include: Tripod turnstile, swing turnstile, flap turnstile, barrier gate, vehicle parking management system, parking guidance system, license plate recognition system, face recognition system.

Most of products has acquired CE certificate, and our factory also gained ISO9001 Quality certificate. Our main markets are South-East Asia, South Asia, Middle East, Europe, Africa, South America. In order to provide our customer better service. More distributors are needed to expand our marketing share and gain win-win outcomes. Welcome to join our distribution network and become our agents in your local.

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Can you customize my goods?
A: Yes, we provide with tailored service upon project requirement.

Q: What's your certificate?
A: ISO9001:2008, ISO9001:14001, CE, Patent license.

Q: What are your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
If you have another question, pls feel free to contact us.
