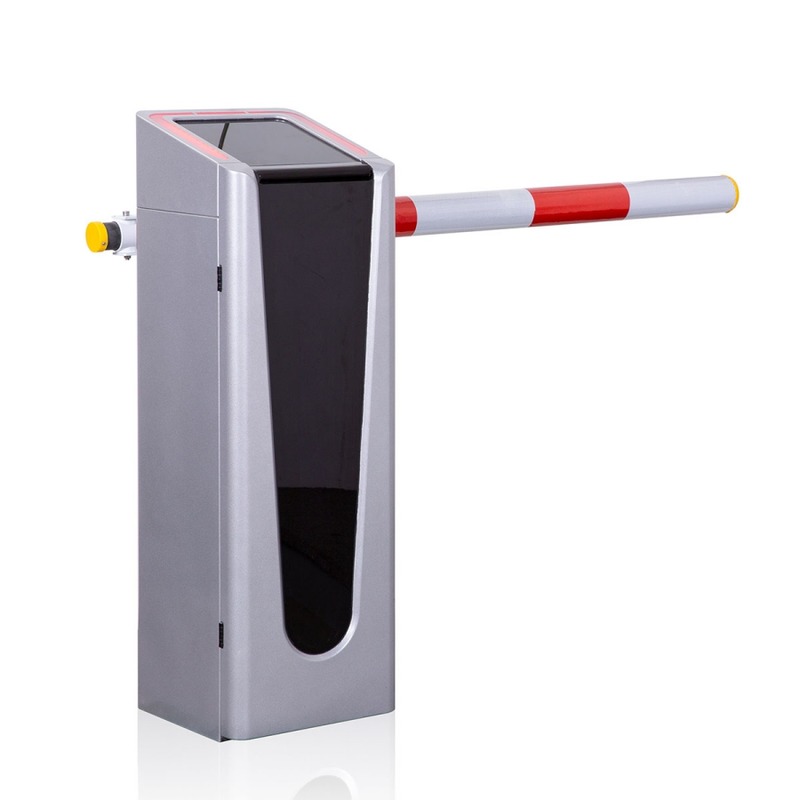

Haoyao G20 Commercial Servo Barrier Gate
MTBF: ≥10 million opening and closing cycles
It can be equipped with CB02E(0.5-0. 9S), CB02H(0.9-5S), and CB02I(3-5S)mechanism
Left-installation and right-installation can be exchanged
Super torque, High precise control,Three spring balance mechanism
Alarm against abnormal lifting boom
Support 24 hour continuous operation without heating protection
LCD function display controller
Electronic clutch design
Speed will reduce when boom moves to the limit position
RS485 communication, TCP/IP network port
DC12V power supply is optional
Functions & Features
1.DC permanent magnet synchronous motor(PMSM),servo control.
2.Superior performance,equivalent to the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, less heat and low noise.
3.Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4.Electronic clutch design: more convenient to unclck or lock the motor when power off.(patented technology)
5. Three tension spring crank transmission design, for more stable and reliable structure.(patented technology)
6.No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7.More sensitive and reacting faster when reversing on obstacles.
8.With counting, delay auto-closing, auto-aging test, alarm when lifting boom without permission, motorcade passing function.
9.LCD display controller, more humanized operation and setting.
10.NO/NC wire control signal input are optional.
11.Integrated RS485 communcation, RJ45 network, infrared photocell, loop detector interface, radar module and more secondary development.
Technical Data
Model | WJCB02E | WJCB02H | WJCB02I | ||||||||
Running Speed | 0.4S~0.9s | 0.9s~5s | 5s | 5s | 5s | 5s | 3s~5s | 5s | 5s | 5s | 5s |
Boom Type | Carbon Steel Straight | Straight | 90° Folding | 180° Folding | 2 Fence | 3 Fence | Straight | 90° Folding | 180° Folding | 2 Fence | 3 Fence |
Max Boom Length | 2m~3.5m | 3.5m~6m | 5m | 4m | 4.5m | 4m | 4.5m~8m | 6m | 5m | 6m | 5m |
Input Voltage | AC 220V±10%, AC110V±10%,50/60HZ | ||||||||||
Motor Voltage | DC310V | ||||||||||
Enclosure Rating | IP54 | ||||||||||
Working Temperature | -35°C~+85°C | ||||||||||
MTBF | 10000000 times | ||||||||||
Duty Cycle | 100% | ||||||||||
Traffic Flow Application | 24 hours uninterrupted operation | ||||||||||
Max Motor Power | 300W | ||||||||||
Max Motor Speed | 90r/min | ||||||||||
Max Torque | 480N.m |
CB02 Commerical Servo Barrier Mechanism
Optional Accessories
