Features Gallery Product Description Request A Quote

Features

Specifications

Color: Orange

Boom: Optional

Insulation Grade: F

Motor: Variable Frequency Motor

Voltage: 220V/110VÂ±10%

Usage: Road Traffic Safety

Warranty: 1 Years

Feature: High Durable

Certificate: CE,ISO9001

Keyword: Barrier Gate

Basic Infomation

Certification: CE,ISO9001

Payment & Shipping Terms

Packaging Details: carton or wooden case

Supply Ability: 10000 Set/Sets per Month barrier gate

Product Description

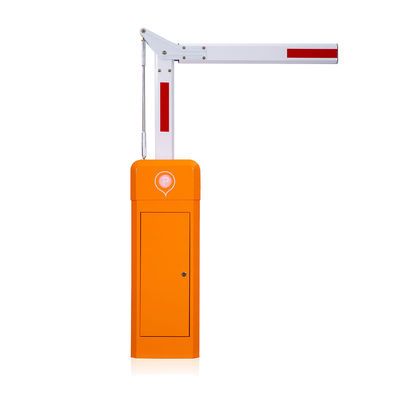

The WJCB01SV barrier gate, which manufactured by our company, adopts the latest automatic technology and intelligent design ahead in this field. Meanwhile, our barrier gates have advanced designs, such as a humanization clutch device, balance device(e.g), which makes our barrier gate work more safely and conveniently. This barrier gate is suitable for indoor as well as outdoor parking areas, Parking lots, toll gates, goods yards, railway crossings, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers, etc.

Model	WJCB01SV-H	WJCB01SV-I
Running Speed	1/1.5/2S	3/4/5S	5S	5S	5S	5S
Boom Type	Straight	Straight	90° Folding	180° Folding	2 Fence	3 Fence
Max Boom Length	3.5M~4.5M	4.5M~6M	5M	4M	4.5M	4M
Input Voltage	AC220V±10%, AC110V±10%
Frequency	50/60HZ
Motor Voltage	DC310V
Enclosure Rating	IP54
Working Temperature	-35°C ~ +85°C
MTBF	6000000 times
Traffic Flow Application	24 hours of uninterrupted operation
Max Motor Power	150W
Max Motor Speed	36r/min
Max Torque	240N.m

Functions & Features

1). DC permanent magnet synchronous motor(PMSM), servo control.
2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, and low noise.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for a more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). Reversing boom more sensitive and reacting faster when encountering obstacles.
8). With counting, delay auto-closing, and auto-aging test function.
9). 4-digit digital tube display more information.
10). NO/NC wire control signal input is optional.
11). Integrated RS485 communication, infrared photocell, and loop detector interface. RJ45 network, loop detector, and radar module can be added.

Packing & Delivery

Manufacturing Technique

Company Profile

SHENZHEN WEJOIN MECHANICAL & ELECTRICAL CO., LTD.

Shenzhen WEJOIN Mechanical&Electrical Co. was founded in 2004. It is the first national high-tech enterprise specialized in research and development, manufacturing, and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers in access control and management product. Its main products include automatic barrier gates, tripod turnstiles, flap barriers, swing barriers, etc. All the products have CE certificates and have been exported to more than 100 countries or regions, such as Germany, British, Spain, Czech, France, Malaysia, India, and so on.

Certifications

Exhibition

FAQ

Q1: What are your main products?
A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Q2: Are you a manufacturer? Do you provide ODM / OEM service?
A: Yes, we are a manufacturer. WEJOIN provides professional customized services for global clients.
Q3: I would like to ask if this is with an RFID card reader and controller?
A: Yes, there is a controller, our barrier gate can connect with an RFID card reader.
Q4: What boom types of your barrier gate?
A: We have 1s with 3m barrier arm, 3s with 4.5m barrier arm, 6s with 6m barrier arm, etc
Q5: What is your MOQ?
A: Any quantity is acceptable.
Q6: How much is 1 set? Can provide product details? How fast and how much it would cost to ship this item?
A: Please Click here and send your inquiry, then we will send you the price and details in time.
Q7: How about the payment option?
A: 30% by T/T, 70% by T/T before delivery.
Q8: Do you have a model that can be used outdoors without further shelter?
A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.
Q9: How much warranty time do you have?
A: Within one year, if any problems, we will offer the accessories.
Q10: Do you use WeChat? Can we please talk on WeChat? or WhatsApp?
A: Yes, my WeChat ID FZ15002051250, my phone number/WhatsApp is +86 15002051250, my skype ID wejoin09.
