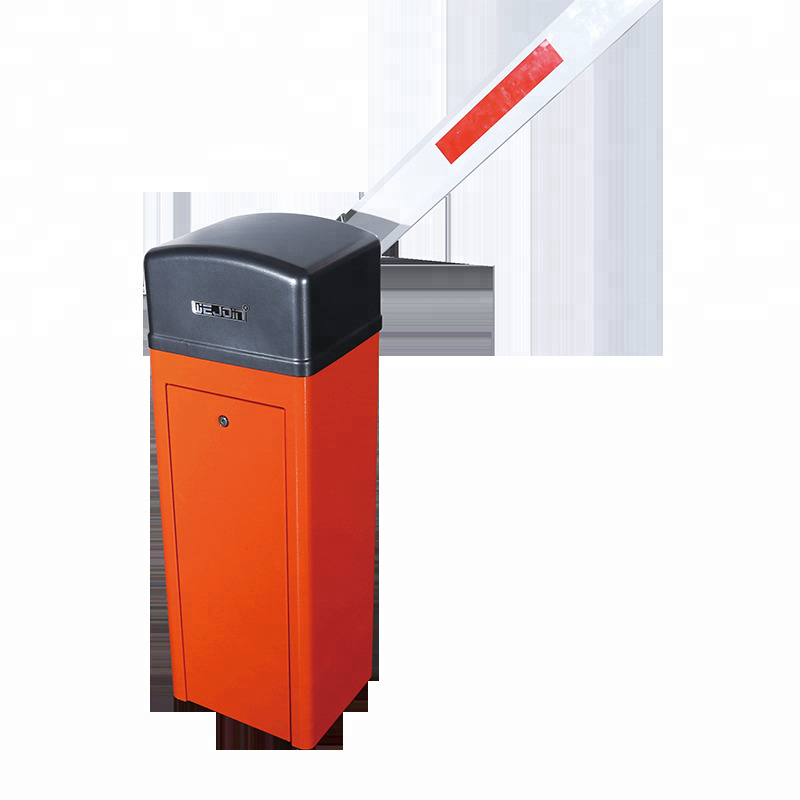

Product Introduction
This product uses the new mold designing technology, mold stamping, die casting technology and no clutch designing. And the quality is more reliable. The mechanism uses the gear worm and crank link structure, and the boom move steady, and easy and quick maintenance.
Technical Data
| Model | WJDZ04SV1 (speed 3~5s adjustable) | |||||
| Running Speed | 3S | 4S | 5S | 5S | 5S | 5S |
| Boom Type | Straight | Straight | Straight | 90° Folding | 2 Fence | 3 Fence |
| Max Boom Length | 4.5M | 5M | 6M | 5M | 4.5M | 4M |
| Model | WJDZ04SV2 (speed 1.5~5s adjustable) | |||||
| Running Speed | 1.5s | 2/3/4/5s | 5s | 5s | 5s | |
| Boom Type | Straight | Straight | 90° Folding | 2 Fence | 3 Fence | |
| Max Boom Length | 3.5m | 4.5m-6m | 4m | 4.5m | 4m | |
| Housing Dimension | 362*325*1030mm | |||||
| Input Voltage | AC220V±10%,AC110V±10% | |||||
| Frequency | 50/60HZ | |||||
| Motor Voltage | DC310V | |||||
| Enclosure Rating | IP54 | |||||
| Working Temperature | -35°C~+85°C | |||||
| MTBF | 5000000 times | |||||
| Traffic Flow Application | 3000 times/24hours | |||||
| Max Motor Power | 150W | |||||
| Max Motor Speed | 24r/min | |||||
| Max Torque | 240N.m | |||||
Functions & Features
1). DC permanent magnet synchronous motor(PMSM), servo control.
2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power conaumption, high efficiency and low noise.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). More sensitive and reacting faster when reversing on obstacles.
8). With counting, delay auto-closing, and auto-aging test function.
9). 4-digit digital tube display, displays more information.
10). NO/NC wire control signal input are optional.
11). Integrated RS485 communication, infrared photocell and loop detector interface. RJ45 network, loop detector, and radar module can be added.
Dual Speed & Bi-direction Mechanism
| [ ADVANCED FEATURES ] |
Speed is adjustable from 1.5s to 4s by every 0.5s
Open/close speed is adjustable
Digital limit
Buffer and slow down when arm goes to limit position
Menu type control panel
| [ RELATED PRODUCTS ] |
| click below photo to see more |
| [ COMPANY INFORMATION ] |
| click below photo to see more |
SHENZHEN WEJOIN WECHANICAL & ELECTRICAL CO., LTD.
Shenzhen Weijoin Mechanical&Electrical Co. was founded in 2004. It is the first national high-tech enterprise speciallized in research and development, manufacturing and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers in access control and management product. Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
| certificates |
| exhibitions |
[ WEJOIN MANUFACTURING TECHNIQUE ] |
| All Product Tests Before Delivery |
WEJOIN utilizes advanced testing equipment and various testing methods in all production processes.
|
| Size | 102 (L) * 37(W) * 47 (D) |
| Weight | 60 KG |
| Packaging Details | The normal package is paper carton (Size: 102*37*47 cm). If wooden box is needed to export overboard, the wooden box will be fumigated.If container is too tigher,we will use pallet or pack it according to customers special request. |
| Size | 615 (L) * 11 (W) * 5 (D) |
| Weight | 6.6 KG |
| Packaging Details | The normal package is foam paper. If wooden box is needed to export overboard, ,the wooden box will be fumigated. |
| [ FAQ ] |
Q1: What is your main products?
A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
Q2: Are you manufacturer? Do you provide ODM / OEM service?
A: Yes, we are manufacturer. WEJOIN provide professional cudtomized serice for global clients.
Q3: I would like to ask if this is with RFID card reader and controller?
A: Yes, there is a controller, our barrier gate can connect with RFID card reader.
Q4: What boom types of your barrier gate?
A: We have 1s with 3m barrier arm, 3s with 4.5m barrier arm, 6s with 6m barrier arm ,etc
Q5: What is your MOQ?
A: Any quantity is acceptable.
Q6: How much is 1 set ? Can provide product details? How fast and how much it would cost to ship this item?
A: Please Click here and send your inquiry, then we will send you the price and details in time.
Q7: How about payment option?
A: 30% by T/T, 70% by T/T before delivery.
Q8: Do you have a model that can be used outdoors without further shelter?
A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.
Q9: How much warranty time do you have?
A: Whithin one years, if any problems, we will offer the accessories.
Q10: Do you use wechat? Can we plaese talk on wechat? or whatsapp?
A: Yes,my wechat ID FZ15002051250, my phone number/whatsapp is +86 15002051250, my skype ID wejoin09.
