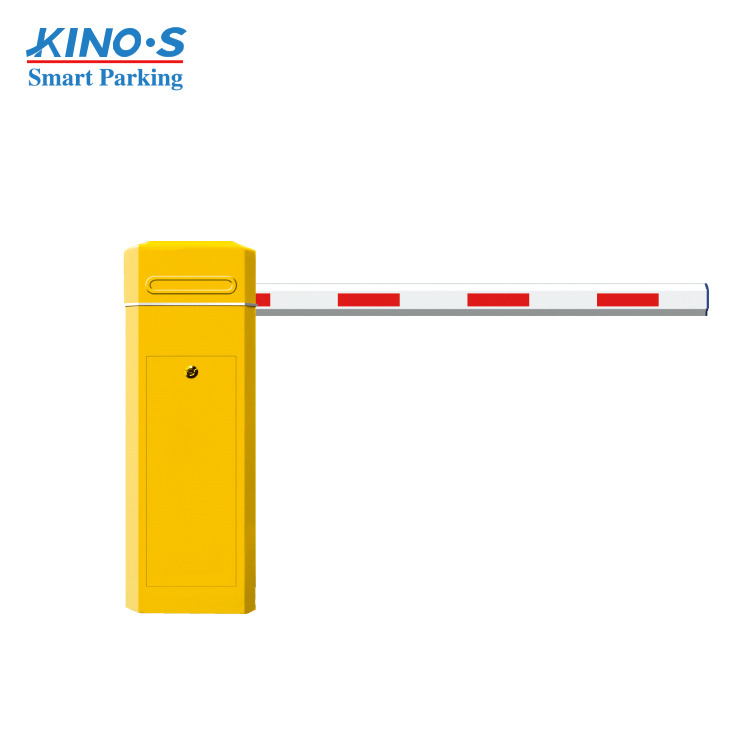

Technical parameter of Automatic Barrier Gate
| Product Name | Intelligent drop arm boom barrier gate for parking lot |
| Model No. | KS-BG-01 |
| Voltage | 220V/110V, ±10% |
| Power | 120W |
| Arm Gate Material | Aluminum Alloy |
| Housing Material | Galvanized Plate |
| Remote control distance | 30 meters |
| Rail Lifting Time | 1.5S~6S (optional) |
| Working Temperature | -20℃ to 45℃ |
| Life time | ≥5,000,000 times |
| Warranty | 1 Year |
1. Unique quick clutch device in the gear box, it is easy to clutch when power is off, then the boom can be control manually for up and down.
2. Strong machine case and anti-collision. The housing will not damaged even the boom is hit.
3. Buttons OPEN CLOSE and Stop to control barrier gate
4. Variety of interface. It can connect to photocell sensor, loop detetor and parking mangement system.
5. Very simple wiring.
6. The machine has a damping function, and the brake lever will not cause rapid bouncing and rapid drop due to clutch..
7. Wireless remote control function (using 315MHZ/433MHZ remote controller).
8. Adopt sine mechanism design and choose maintenance-free bearings to ensure the least parts wearing.
9. Anti-bumping: During the process of falling down(the angle between the arm and horizontal lane is more than 15 degree), if there is vehicle entering the detection area(working with vehicle detector), the arm will go up automatically to avoid car hit.
10. Multiple limit protection function
Click here for price!
Cilck here for price!
1.Before sale technical support, we can work out exact solution according to clients requirement Wiring diagram and products manual are provided for installation.
2.We can provide technical support via email/video/phone/teamviewer from long distance. Free training. You can send staff to China for training, or we can arrange engineers to your place for training.
3.Our machine failure rate is low. You can also store some parts for back up, if the parts break down, you can replace it immediately.
Cilck here for more information!
FAQ
1. What is the MOQ?
The MOQ is one set.
2. How about the warranty and after-sales service?
We provide 1year free warranty and lifelong paid services.
3. What about the delivery time?
1-3 working days upon receipt of your deposit.
4.About the OEM and ODM
Our company have technology research and development
